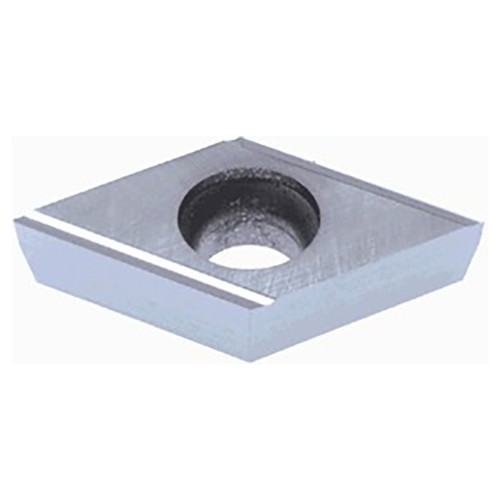

Positive 7 degree relief angle, G class, 55 degree rhombic insert for finishing to medium cutting.
| # MFG | 6737010 |
| Corner Radius (Inch) | 0.004" |
| Cutting Edge Length (Inch) | 0.307" |
| Maximum Depth of Cut (Inch) | 0.1969" |
| Fixing Hole Diameter (Inch) | 0.11" |
| Inscribed Circle Diameter (Inch) | 1/4" |
| Insert Thickness (Inch) | 0.094" |
| Maximum Turning Feed (Inch) | 0.0039"/rev |
| Minimum Depth of Cut (Inch) | 0.0004" |
| Minimum Turning Feed (Inch) | 0.0004"/rev |
| Cutting Edge Material | Carbide |
| Grade | SH725 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| Chip Breaker Type | J10 |
| Major Clearance Angle | 7 Degree |
| Body Material | Carbide |
