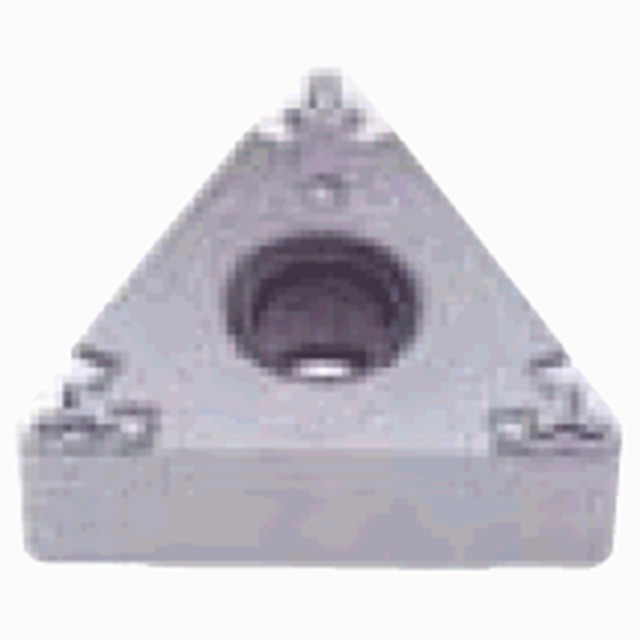

Tungaloy 6737223 | TNGG 330.5 F-01 SH725 3/8" Circle Diameter x 0.187" Thickness x 0.008" Radius Carbide Indexable Turning Insert

$21.25 $14.88
(You save $6.37)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0080"
SKU:
23128270
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Negative relief angle, G class, triangular insert, for precision finishing.


Product Specifications
Manufacturer Part Number6737223
Corner Radius (Inch)0.008"
Cutting Edge Length (Inch)0.65"
Maximum Depth of Cut (Inch)0.0197"
Fixing Hole Diameter (Inch)0.15"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0059"/rev
Minimum Depth of Cut (Inch)0.0007"
Minimum Turning Feed (Inch)0.0012"/rev
Cutting Edge MaterialCarbide
GradeSH725
Tool TypeTurn Negative Inserts
Applicable MaterialSteel, Stainless Steel, Cast Iron, Hi Temp Alloys
Chip Breaker Type1
Body MaterialCarbide

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0080"
