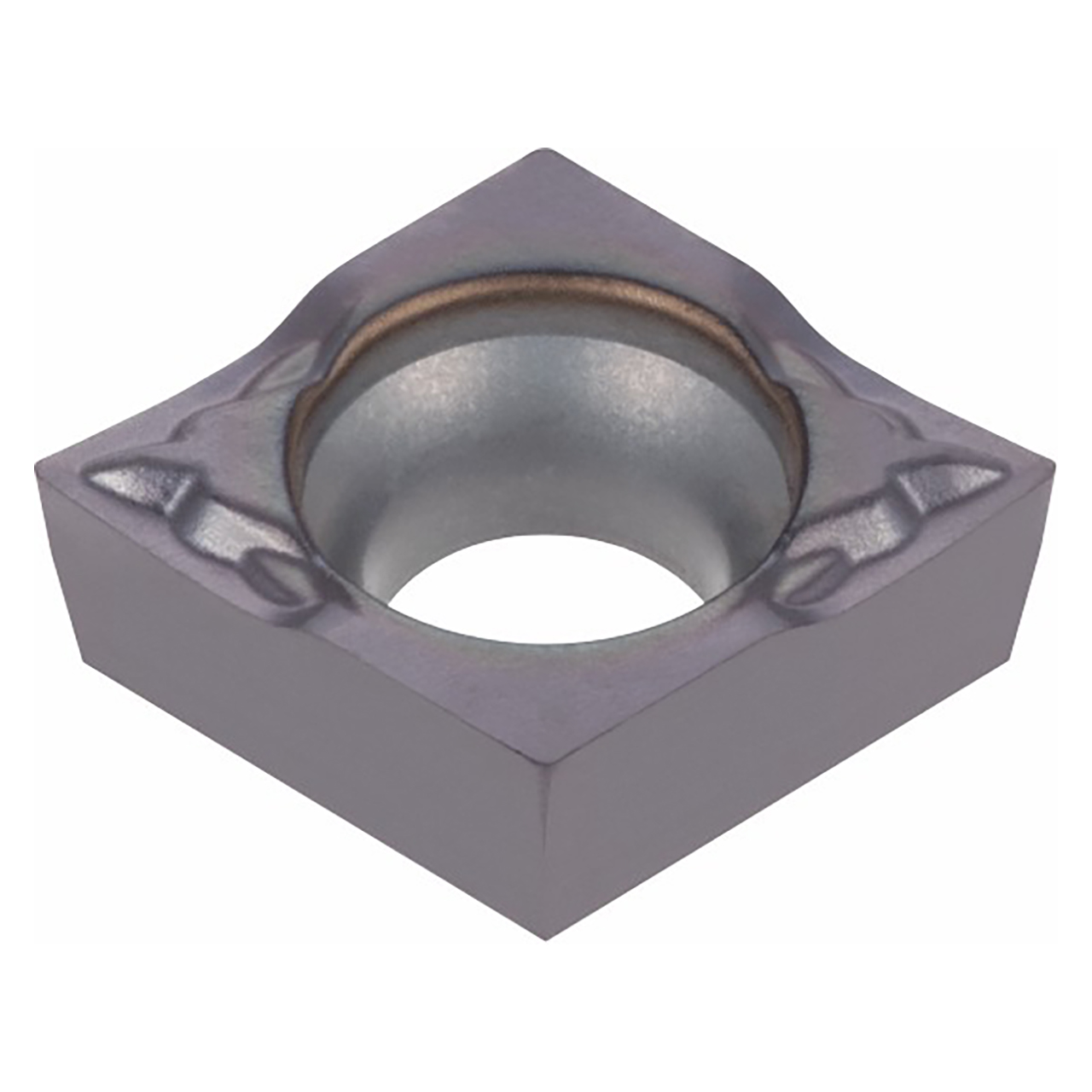

Tungaloy 6737270 | CCGT 5.52.20.5 F-JS SH725 0.172" Circle Diameter x 0.070" Thickness x 0.008" Radius Carbide Indexable Turning Insert

$27.00 $18.90
(You save $8.10)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
11/64"
Inscribed Circle (Decimal Inch):
0.1720"
Inscribed Circle (mm):
4.37mm
Thickness (Inch):
1/16"
Thickness (Decimal Inch):
0.0700"
Thickness (mm):
1.78mm
Corner Radius (Decimal Inch):
0.0080"
interval quantity:
10
SKU:
23128317
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Positive 7 degree relief angle, G class, 80 degree rhombic insert for finishing to medium cutting.


Product Specifications
# MFG6737270
Corner Radius (Inch)0.008"
Cutting Edge Length (Inch)0.173"
Maximum Depth of Cut (Inch)0.0197"
Fixing Hole Diameter (Inch)0.091"
Inscribed Circle Diameter (Inch)0.172"
Insert Thickness (Inch)0.07"
Maximum Turning Feed (Inch)0.0039"/rev
Minimum Depth of Cut (Inch)0.0039"
Minimum Turning Feed (Inch)0.0008"/rev
Cutting Edge MaterialCarbide
GradeSH725
Tool TypeTurn Positive Inserts
Applicable MaterialSteel, Stainless Steel, Cast Iron, Hi Temp Alloys
Chip Breaker TypeJS
Major Clearance Angle7 Degree
Body MaterialCarbide
