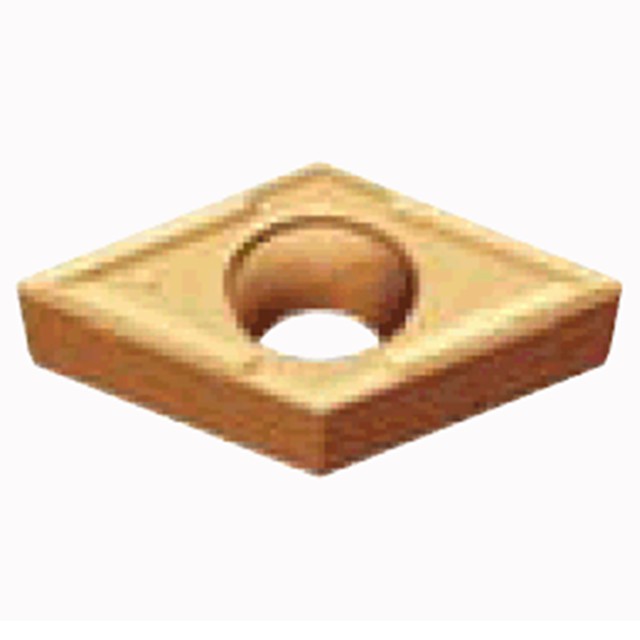

Tungaloy 6739800 | DCMT 32.51 CM T515 3/8" Circle Diameter x 0.156" Thickness x 0.016" Radius TiCN+Al2O3 Coated Carbide Indexable Turning Insert

$17.65 $12.36
(You save $5.29)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1560"
Thickness (mm):
3.96mm
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.41mm
SKU:
23020087
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Positive 7 degree relief angle, M class, 55 degree rhombic insert, for multi-purpose cutting of grey and ductile cast iron.


Product Specifications
Manufacturer Part Number6739800
Corner Radius (Inch)0.016"
Cutting Edge Length (Inch)0.457"
Maximum Depth of Cut (Inch)0.0787"
Fixing Hole Diameter (Inch)0.173"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)0.156"
Maximum Turning Feed (Inch)0.0078"/rev
Minimum Depth of Cut (Inch)0.0019"
Minimum Turning Feed (Inch)0.002"/rev
CoatingTiCN+Al2O3
Cutting Edge MaterialCarbide
GradeT515
Tool TypeTurn Positive Inserts
Applicable MaterialCast Iron
Chip Breaker TypeCM
Major Clearance Angle7 Degree
Body MaterialCarbide
