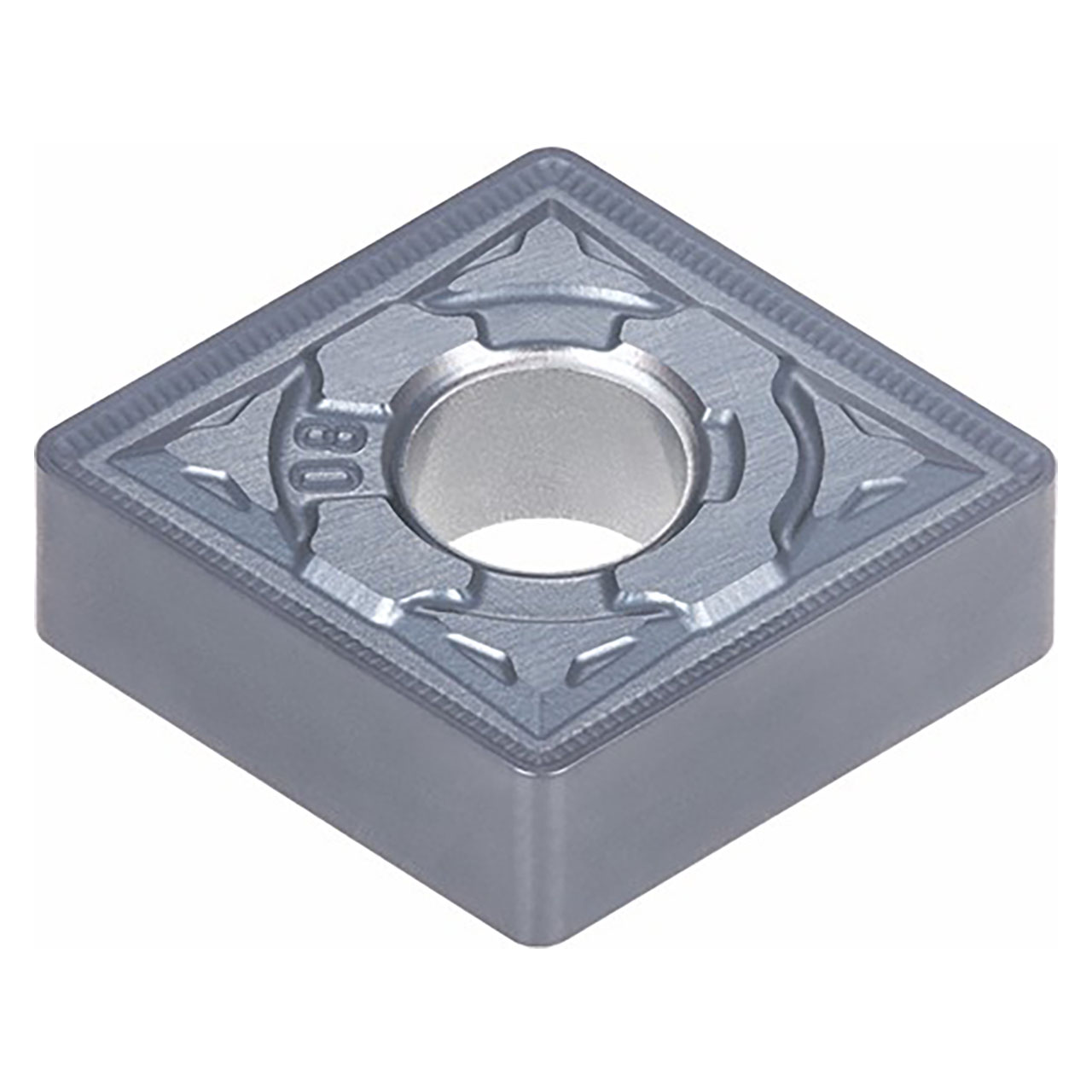

Tungaloy 6741642 | CNMG 433 HRM AH8015 1/2" Circle Diameter x 0.187" Thickness x 0.047" Radius TiAlN Coated Carbide Indexable Turning Insert

$17.65 $11.47
(You save $6.18)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0470"
Corner Radius (mm):
1.19mm
interval quantity:
10
SKU:
23019296
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Related Products

Negative relief angle, M class, 80 degree rhombic insert, for medium cutting to finishing of super alloy.


Product Specifications
# MFG6741642
Corner Radius (Inch)0.047"
Cutting Edge Length (Inch)0.508"
Maximum Depth of Cut (Inch)0.1575"
Fixing Hole Diameter (Inch)0.203"
Inscribed Circle Diameter (Inch)1/2"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0118"/rev
Minimum Depth of Cut (Inch)0.0196"
Minimum Turning Feed (Inch)0.0039"/rev
CoatingTiAlN
Cutting Edge MaterialCarbide
GradeAH8015
Applicable MaterialStainless Steel, Hard Materials, Hi Temp Alloys
Chip Breaker TypeHRM-R12
Body MaterialCarbide
