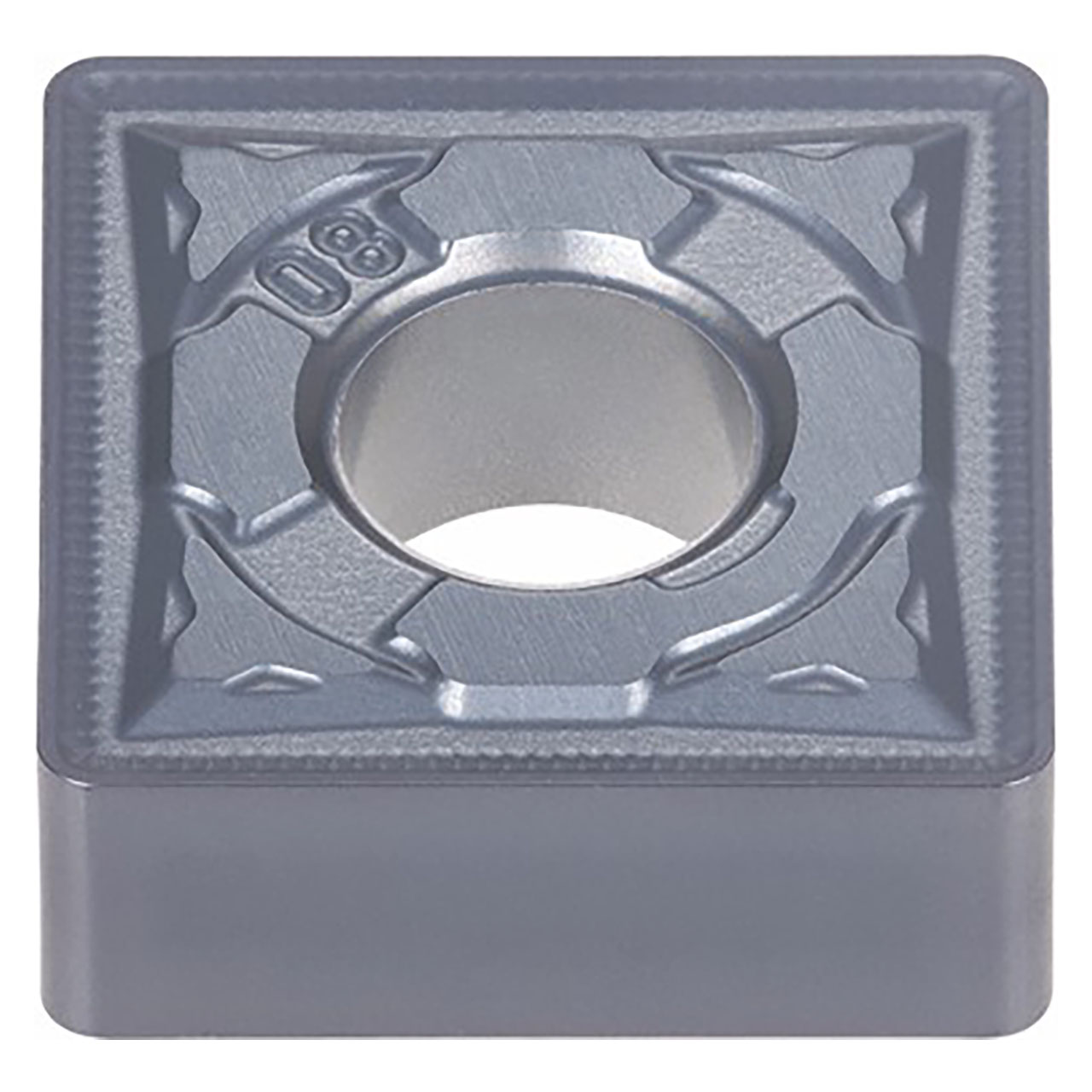

Negative relief angle, M class, square insert, for medium cutting to finishing of super alloy.
| # MFG | 6741678 |
| Corner Radius (Inch) | 0.047" |
| Cutting Edge Length (Inch) | 1/2" |
| Maximum Depth of Cut (Inch) | 0.1575" |
| Fixing Hole Diameter (Inch) | 0.203" |
| Inscribed Circle Diameter (Inch) | 1/2" |
| Insert Thickness (Inch) | 0.187" |
| Maximum Turning Feed (Inch) | 0.0118"/rev |
| Minimum Depth of Cut (Inch) | 0.0196" |
| Minimum Turning Feed (Inch) | 0.0039"/rev |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Grade | AH8015 |
| Applicable Material | Stainless Steel, Hard Materials, Hi Temp Alloys |
| Chip Breaker Type | HRM-R12 |
| Body Material | Carbide |
