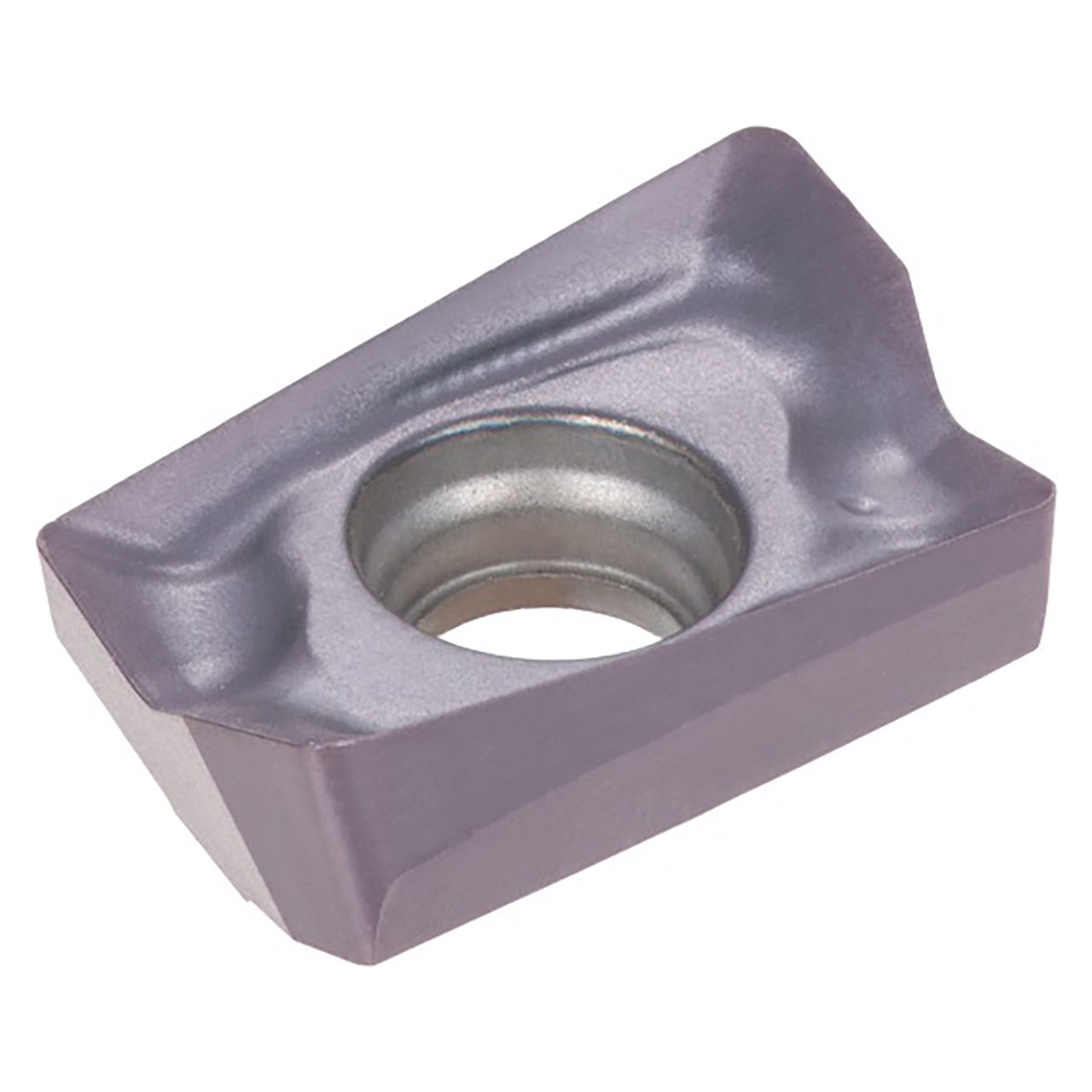

Tungaloy 6743203 | AVGT060302PBER-MJ AH120 0.106" Thickness x 0.008" Radius TiAlN Coated Carbide Milling Insert

$23.45 $19.46
(You save $3.99)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH120
Finish/Coating:
TiAlN
Width (Inch):
13/64"
Width (Decimal Inch):
0.1970"
Width (mm):
5.00mm
Thickness (Inch):
7/64"
Thickness (Decimal Inch):
0.1060"
Thickness (mm):
2.69mm
interval quantity:
10
SKU:
23018023
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Related Products

Single-sided insert with 2 edges and MJ chipbreaker.


Product Specifications
# MFG6743203
Cutting Edge Effective Length (Inch)0.315"
Corner Radius (Inch)0.0079"
Depth of Cut Maximum (Inch)0.236"
Insert Thickness (Inch)0.106"
Insert Width (Inch)0.197"
Maximum Feed per Tooth0.0047"/tooth
Minimum Feed per Tooth0.0027"/tooth
Number of Cutting Edges2
Wiper Edge Length0.059"
ApplicationShoulder Milling
CoatingTiAlN
Body MaterialCarbide
GradeAH120
Cutting Edge MaterialCarbide
Applicable MaterialSteel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys
