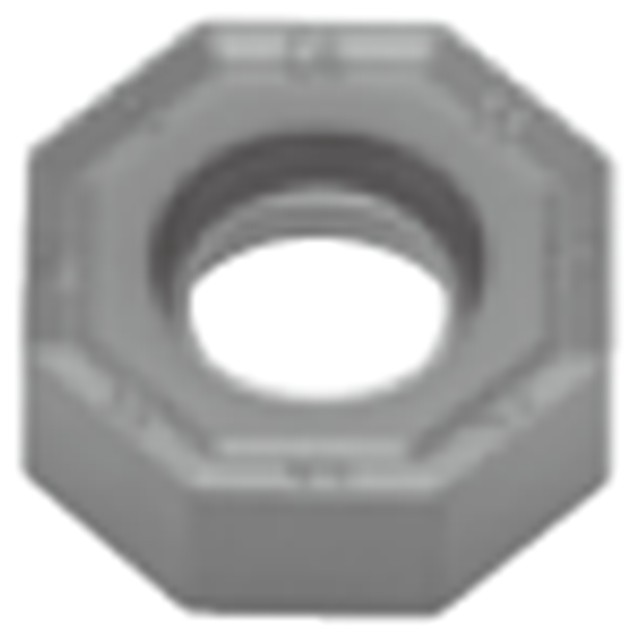

Tungaloy 6747245 | ONMU0705ANPN-MJ T1215 0.681" Diameter x 0.244" Thickness x 0.032" Radius TiCN+Al2O3 Coated Carbide Milling Insert

$28.65 $23.78
(You save $4.87)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
T1215
Finish/Coating:
TiCN+Al2O3
Width (Inch):
9/32"
Width (Decimal Inch):
0.2830"
Width (mm):
7.19mm
Inscribed Circle (Inch):
11/16"
Inscribed Circle (Decimal Inch):
0.6810"
Inscribed Circle (mm):
17.30mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2440"
Thickness (mm):
6.20mm
SKU:
23128610
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Double-sided octagonal insert with 16 cutting edges.


Product Specifications
Manufacturer Part Number6747245
Cutting Edge Effective Length (Inch)0.283"
Corner Radius (Inch)0.0315"
Depth of Cut Maximum (Inch)0.189"
Inscribed Circle Diameter (Inch)0.681"
Insert Thickness (Inch)0.244"
Insert Width (Inch)0.283"
Maximum Feed per Tooth0.0157"/tooth
Minimum Feed per Tooth0.008"/tooth
Number of Cutting Edges16
ApplicationFace Milling
CoatingTiCN+Al2O3
Body MaterialCarbide
GradeT1215
Cutting Edge MaterialCarbide
Applicable MaterialCast Iron
