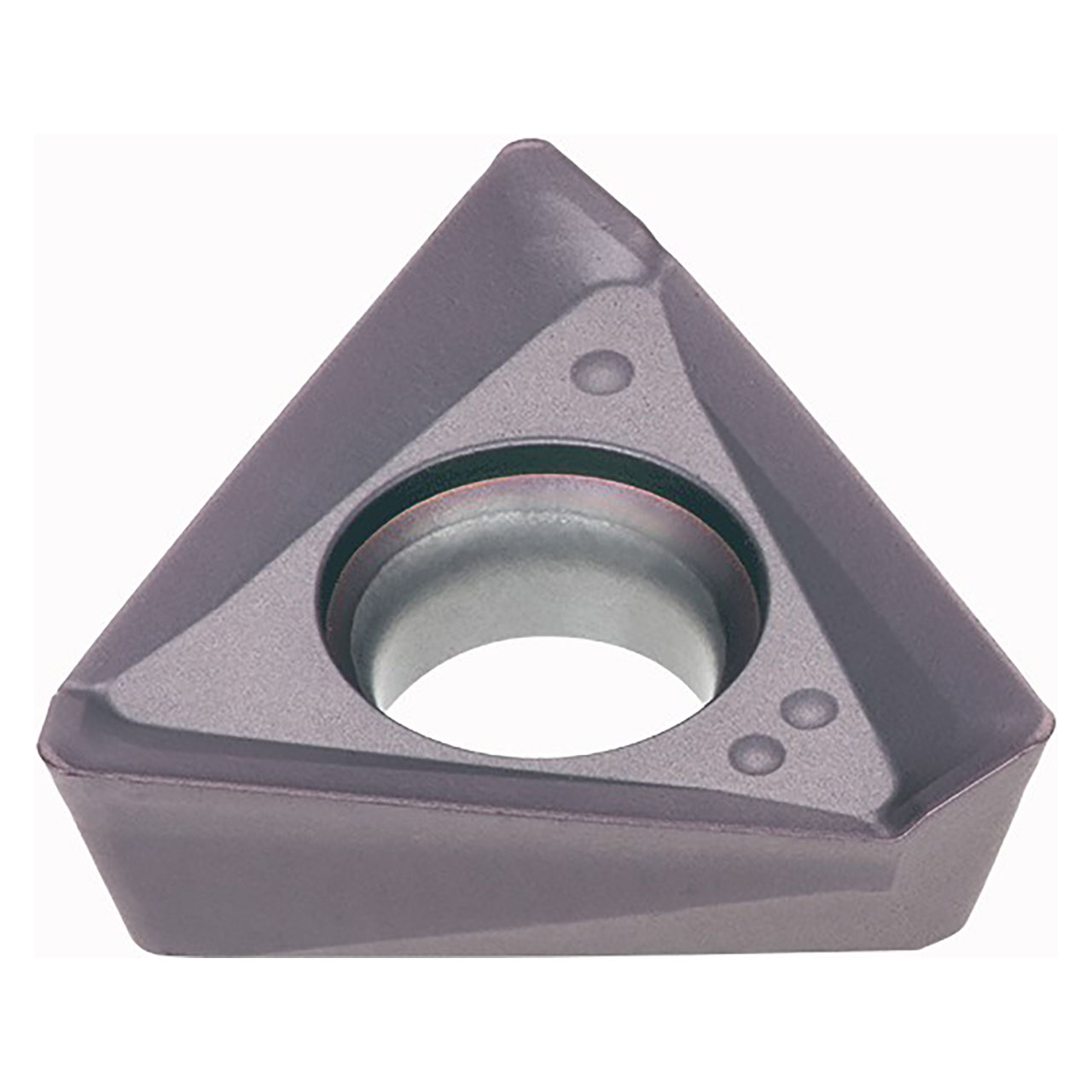

High performance inserts with MJ chipbreaker for general purpose.
| # MFG | 6747251 |
| Cutting Edge Effective Length (Inch) | 0.413" |
| Corner Radius (Inch) | 0.0315" |
| Depth of Cut Maximum (Inch) | 0.394" |
| Inscribed Circle Diameter (Inch) | 0.339" |
| Insert Thickness (Inch) | 0.185" |
| Maximum Feed per Tooth | 0.0079"/tooth |
| Minimum Feed per Tooth | 0.003"/tooth |
| Number of Cutting Edges | 3 |
| Wiper Edge Length | 0.043" |
| Application | Shoulder Milling |
| Coating | TiCN+Al2O3 |
| Body Material | Carbide |
| Grade | T1215 |
| Cutting Edge Material | Carbide |
| Applicable Material | Cast Iron |
