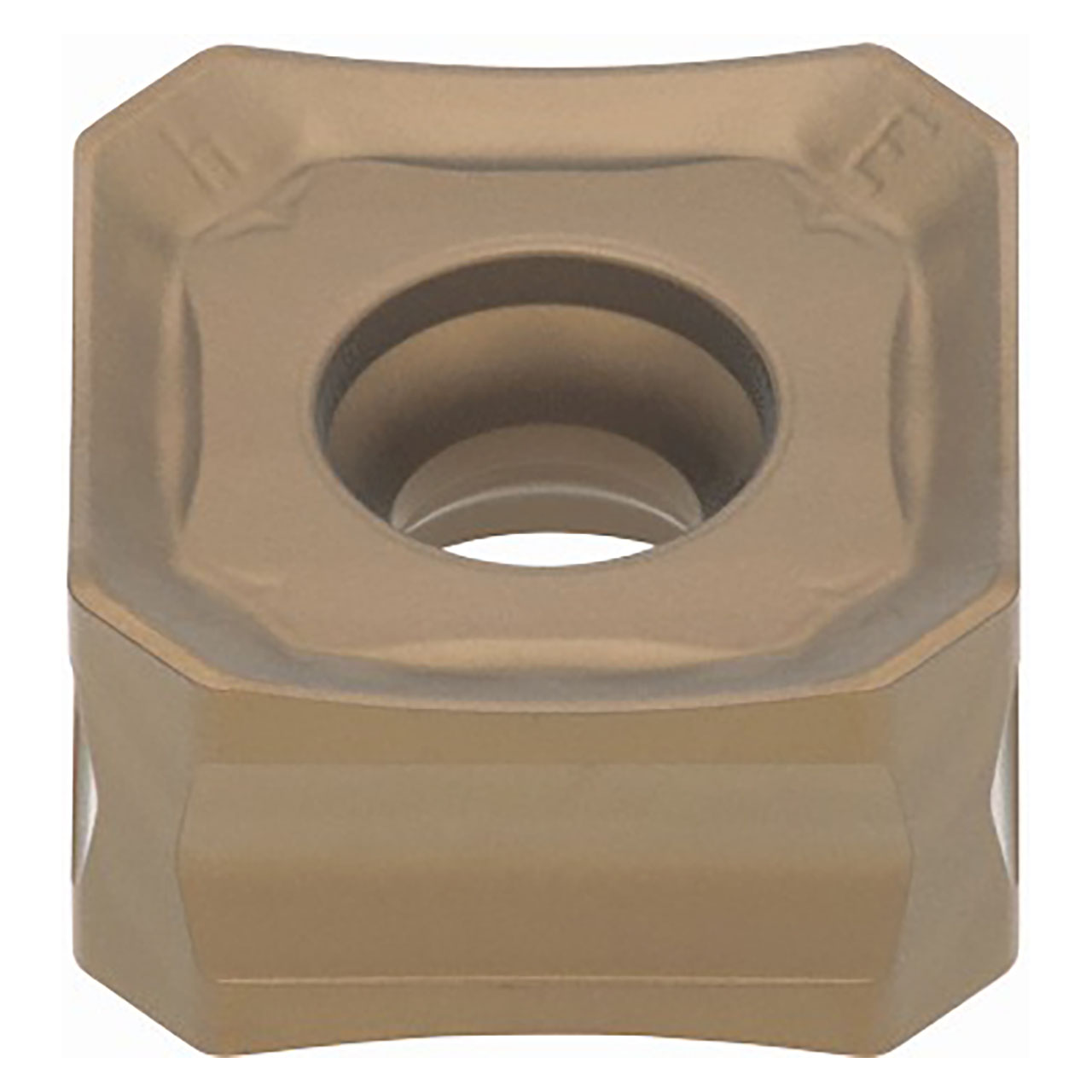

Double-sided square insert with 8 edges and MH chipbreaker.
Product Specifications
| # MFG | 6747499 |
| Cutting Edge Effective Length (Inch) | 0.354" |
| Corner Radius (Inch) | 0.0315" |
| Depth of Cut Maximum (Inch) | 0.236" |
| Inscribed Circle Diameter (Inch) | 0.512" |
| Insert Thickness (Inch) | 0.276" |
| Maximum Feed per Tooth | 0.0197"/tooth |
| Minimum Feed per Tooth | 0.0039"/tooth |
| Number of Cutting Edges | 8 |
| Wiper Edge Length | 0.079" |
| Application | Face Milling |
| Body Material | Carbide |
| Grade | T3225 |
| Applicable Material | Steel, Stainless Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
T3225
Inscribed Circle (Inch):
33/64"
Inscribed Circle (Decimal Inch):
0.5120"
Inscribed Circle (mm):
13.00mm
Thickness (Inch):
9/32"
Thickness (Decimal Inch):
0.2760"
Thickness (mm):
7.01mm
interval quantity:
10
