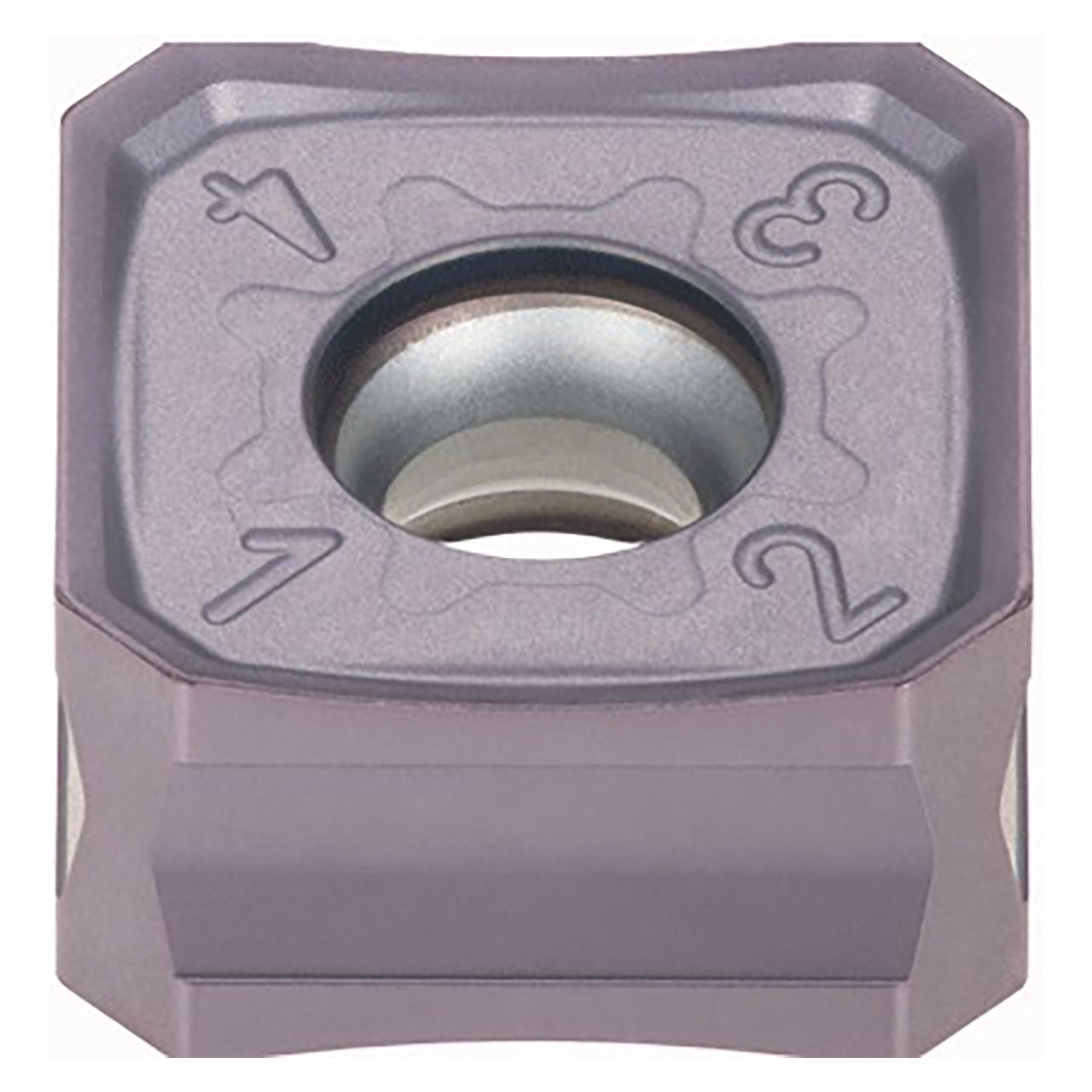

Double-sided square inserts, G class, with 8 edges and MJ chipbreaker.
| # MFG | 6749573 |
| Cutting Edge Effective Length (Inch) | 0.37" |
| Corner Radius (Inch) | 0.0197" |
| Depth of Cut Maximum (Inch) | 0.236" |
| Inscribed Circle Diameter (Inch) | 0.512" |
| Insert Thickness (Inch) | 0.276" |
| Maximum Feed per Tooth | 0.0197"/tooth |
| Minimum Feed per Tooth | 0.0039"/tooth |
| Number of Cutting Edges | 8 |
| Wiper Edge Length | 0.079" |
| Application | Face Milling |
| Body Material | Carbide |
| Grade | T3225 |
| Applicable Material | Steel, Stainless Steel |
