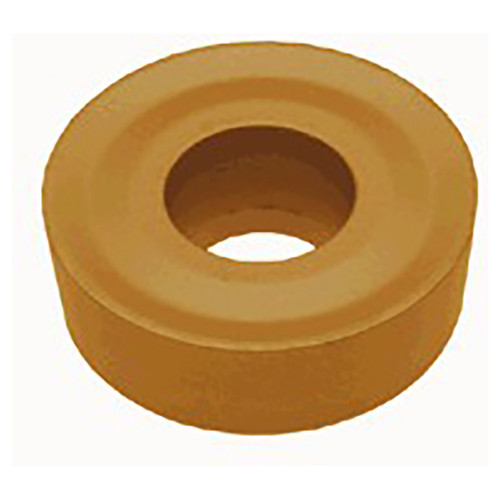

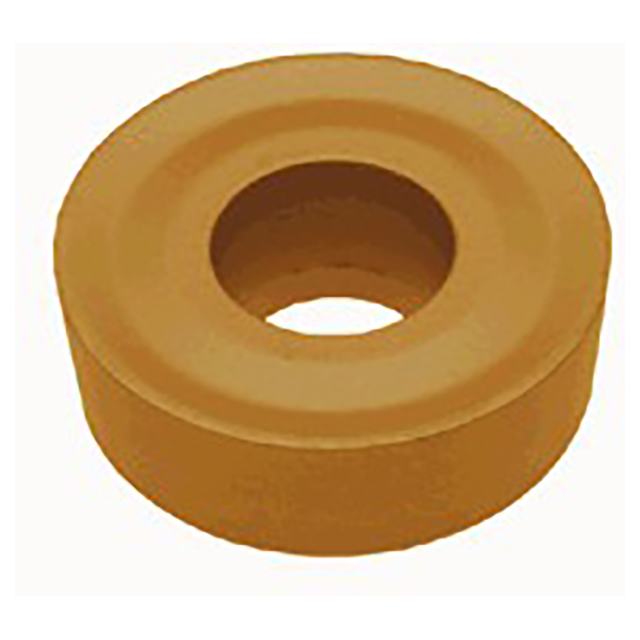

Positive 7 degree relief angle, M class, round insert, for heavy cutting.
Product Specifications
| # MFG | 6747788 |
| Cutting Edge Length (Inch) | 0.472" |
| Maximum Depth of Cut (Inch) | 0.0787" |
| Fixing Hole Diameter (Inch) | 0.165" |
| Inscribed Circle Diameter (Inch) | 0.472" |
| Insert Thickness (Inch) | 0.187" |
| Maximum Turning Feed (Inch) | 0.0393"/rev |
| Minimum Depth of Cut (Inch) | 0.0196" |
| Minimum Turning Feed (Inch) | 0.0196"/rev |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Grade | AH8005 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Hard Materials, Hi Temp Alloys |
| Chip Breaker Type | 61 |
| Major Clearance Angle | 7 Degree |
| Body Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
15/32"
Inscribed Circle (Decimal Inch):
0.4720"
Inscribed Circle (mm):
11.99mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
interval quantity:
10
