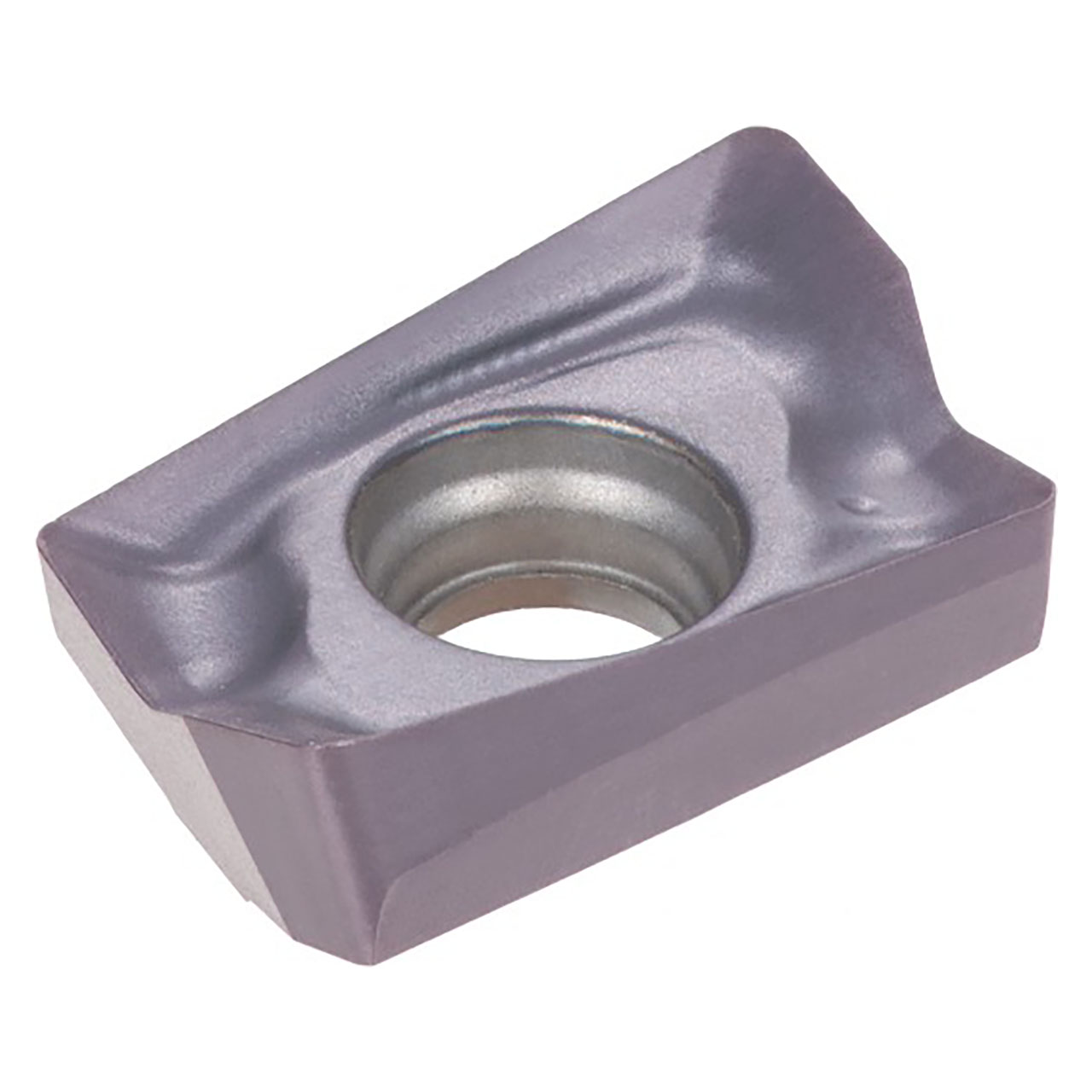

Single-sided insert with 2 edges and MJ chipbreaker.
Product Specifications
| # MFG | 6750614 |
| Cutting Edge Effective Length (Inch) | 0.315" |
| Corner Radius (Inch) | 0.0079" |
| Depth of Cut Maximum (Inch) | 0.236" |
| Insert Thickness (Inch) | 0.106" |
| Insert Width (Inch) | 0.197" |
| Maximum Feed per Tooth | 0.0039"/tooth |
| Minimum Feed per Tooth | 0.0016"/tooth |
| Number of Cutting Edges | 2 |
| Wiper Edge Length | 0.059" |
| Application | Shoulder Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH130 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH130
Finish/Coating:
TiAlN
Width (Inch):
13/64"
Width (Decimal Inch):
0.1970"
Width (mm):
5.00mm
Thickness (Inch):
7/64"
Thickness (Decimal Inch):
0.1060"
Thickness (mm):
2.69mm
interval quantity:
10
