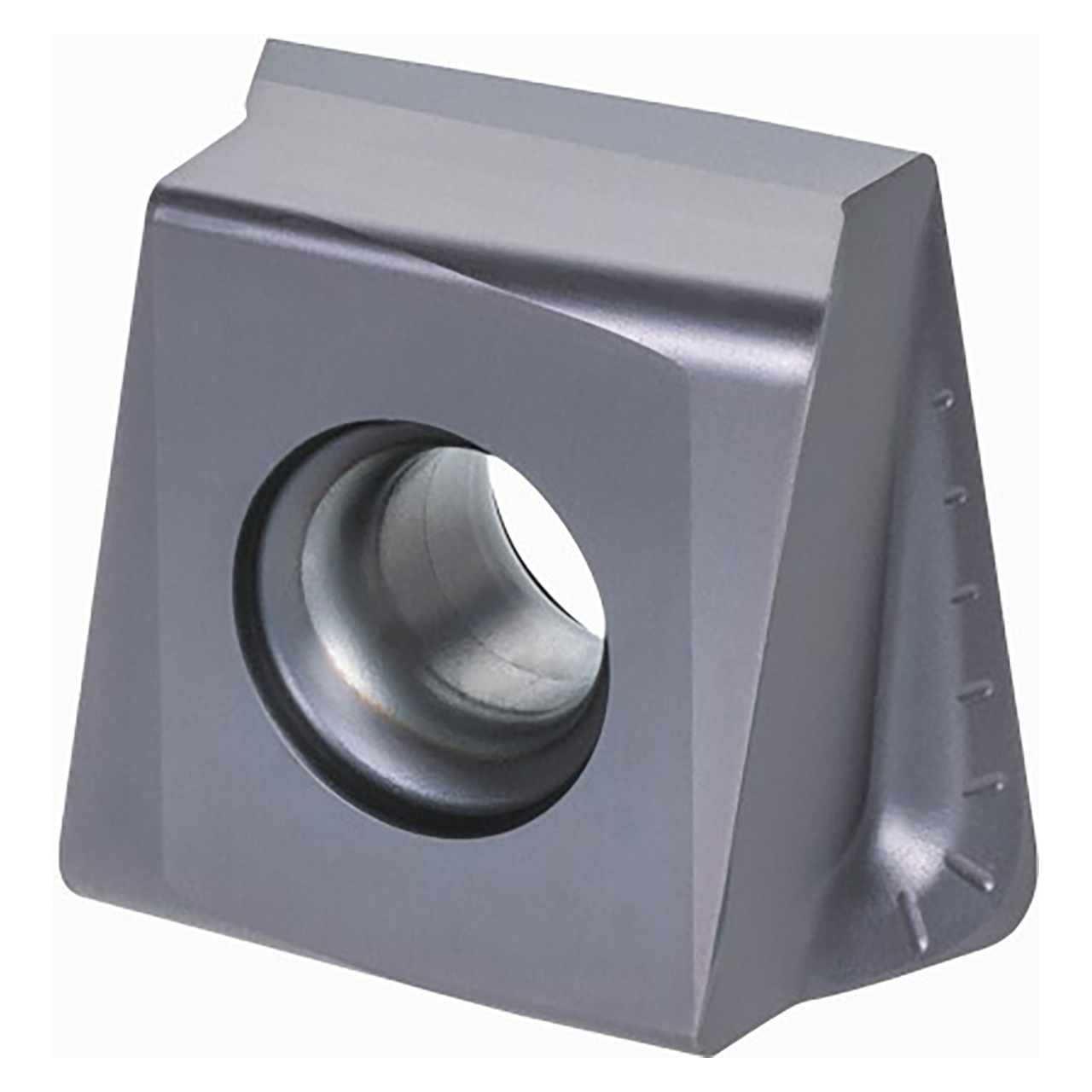

Double sided tangential insert with chipbreaker and highly toughness cutting edges.
| # MFG | 6755735 |
| Corner Radius (Inch) | 0.063" |
| Depth of Cut Maximum (Inch) | 0.382" |
| Insert Thickness (Inch) | 0.453" |
| Insert Width (Inch) | 0.28" |
| Maximum Feed per Tooth | 0.0098"/tooth |
| Minimum Feed per Tooth | 0.005"/tooth |
| Number of Cutting Edges | 4 |
| Wiper Edge Length | 0.047" |
| Application | Shoulder Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH3135 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Hard Materials, Hi Temp Alloys |
