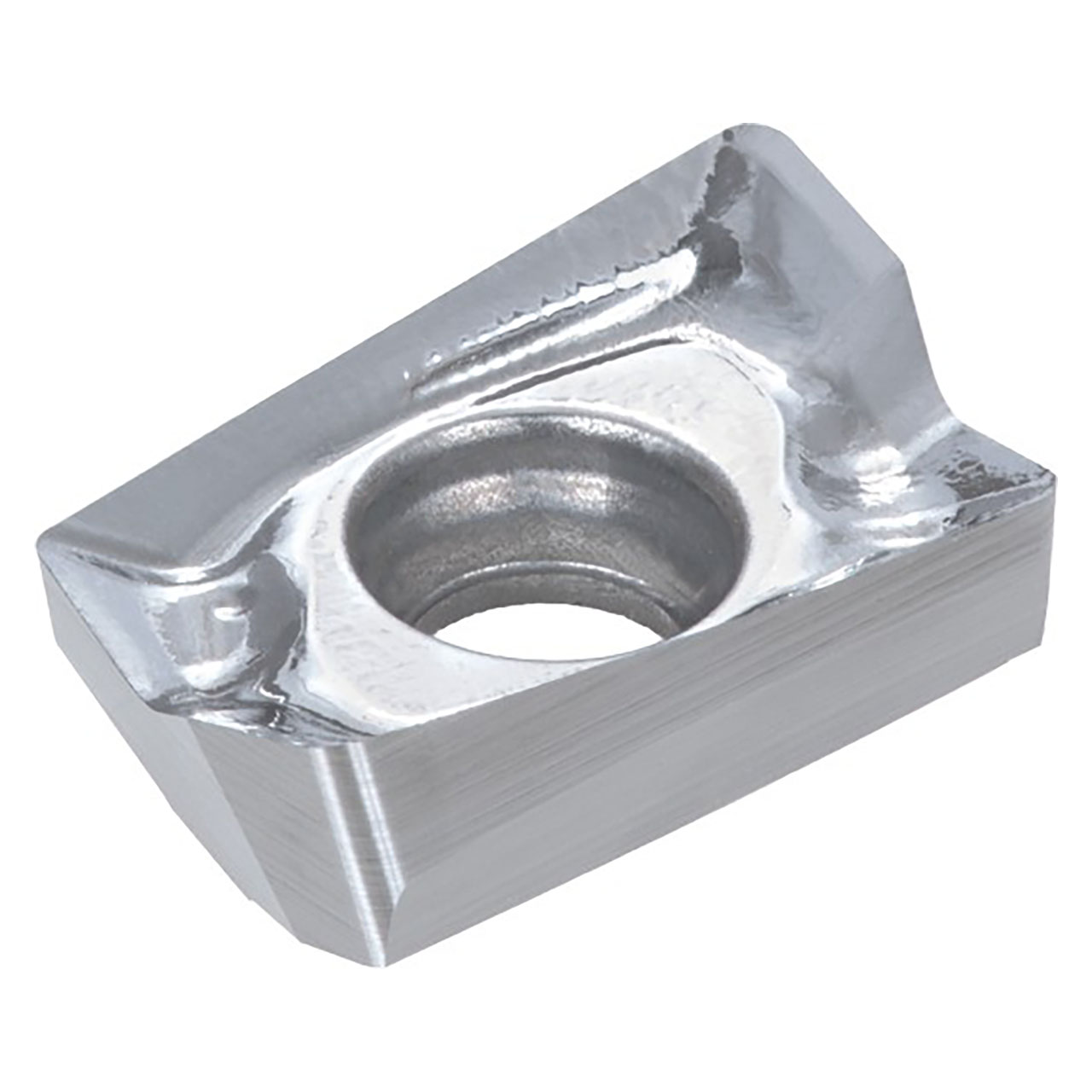

Single-sided insert with 2 edges and AJ chipbreaker for non-ferrous material.
| # MFG | 6757745 |
| Cutting Edge Effective Length (Inch) | 0.315" |
| Depth of Cut Maximum (Inch) | 0.236" |
| Insert Thickness (Inch) | 0.106" |
| Insert Width (Inch) | 0.197" |
| Maximum Feed per Tooth | 0.0047"/tooth |
| Minimum Feed per Tooth | 0.0027"/tooth |
| Number of Cutting Edges | 2 |
| Wiper Edge Length | 0.063" |
| Application | Shoulder Milling |
| Body Material | Carbide |
| Grade | KS05F |
| Cutting Edge Material | Carbide |
| Applicable Material | Cast Iron, Non Ferrous Metals, Hi Temp Alloys |
