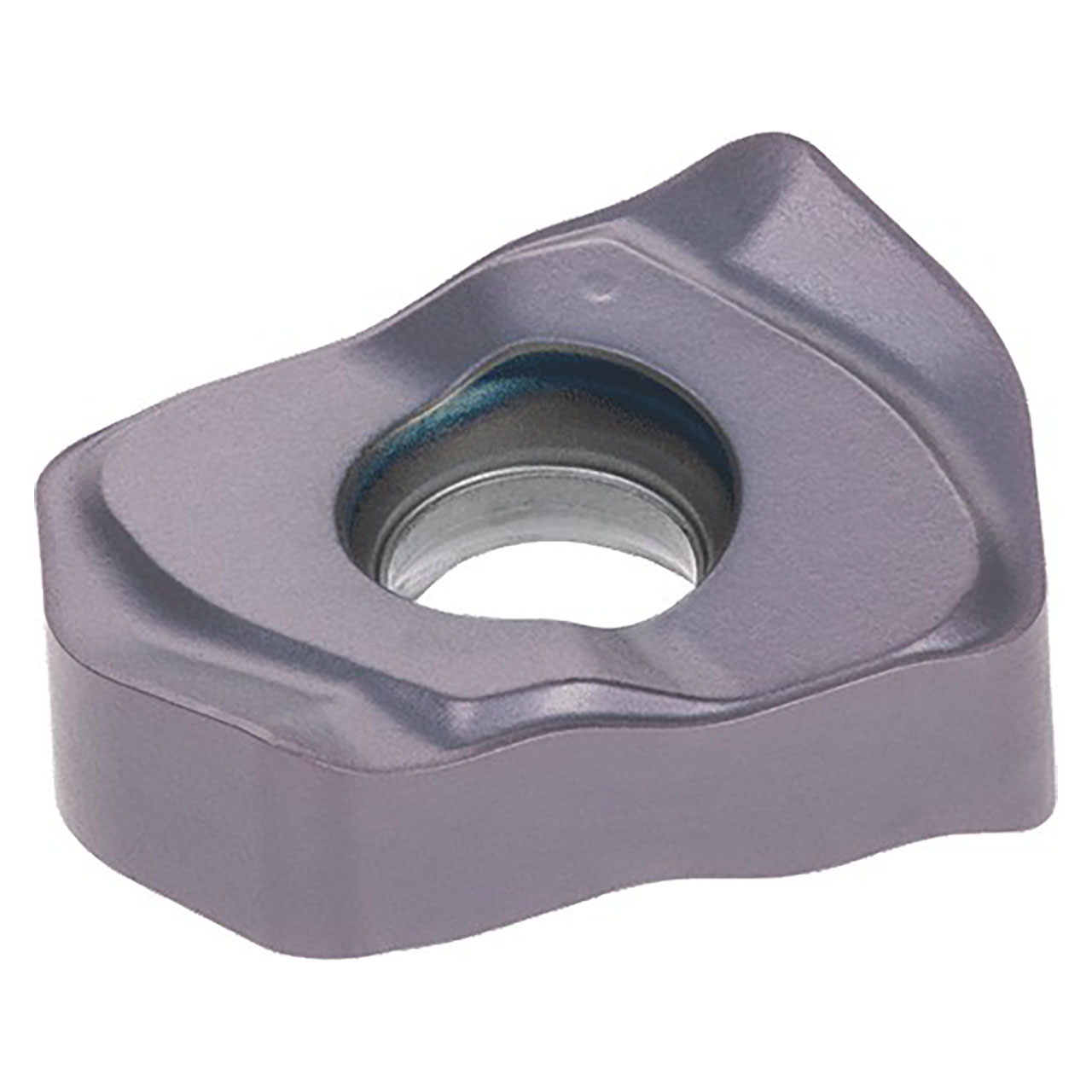

Double-sided insert with 4 edges for high-feed milling.
| # MFG | 6761274 |
| Cutting Edge Effective Length (Inch) | 0.169" |
| Corner Radius (Inch) | 0.0512" |
| Depth of Cut Maximum (Inch) | 0.051" |
| Insert Length (Inch) | 0.472" |
| Insert Thickness (Inch) | 0.197" |
| Insert Width (Inch) | 0.323" |
| Maximum Feed per Tooth | 0.0512"/tooth |
| Minimum Feed per Tooth | 0.0118"/tooth |
| Number of Cutting Edges | 4 |
| Application | Face Milling, High Feed Milling, Profile Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH8015 |
| Cutting Edge Material | Carbide |
| Applicable Material | Stainless Steel, Hard Materials, Hi Temp Alloys |
