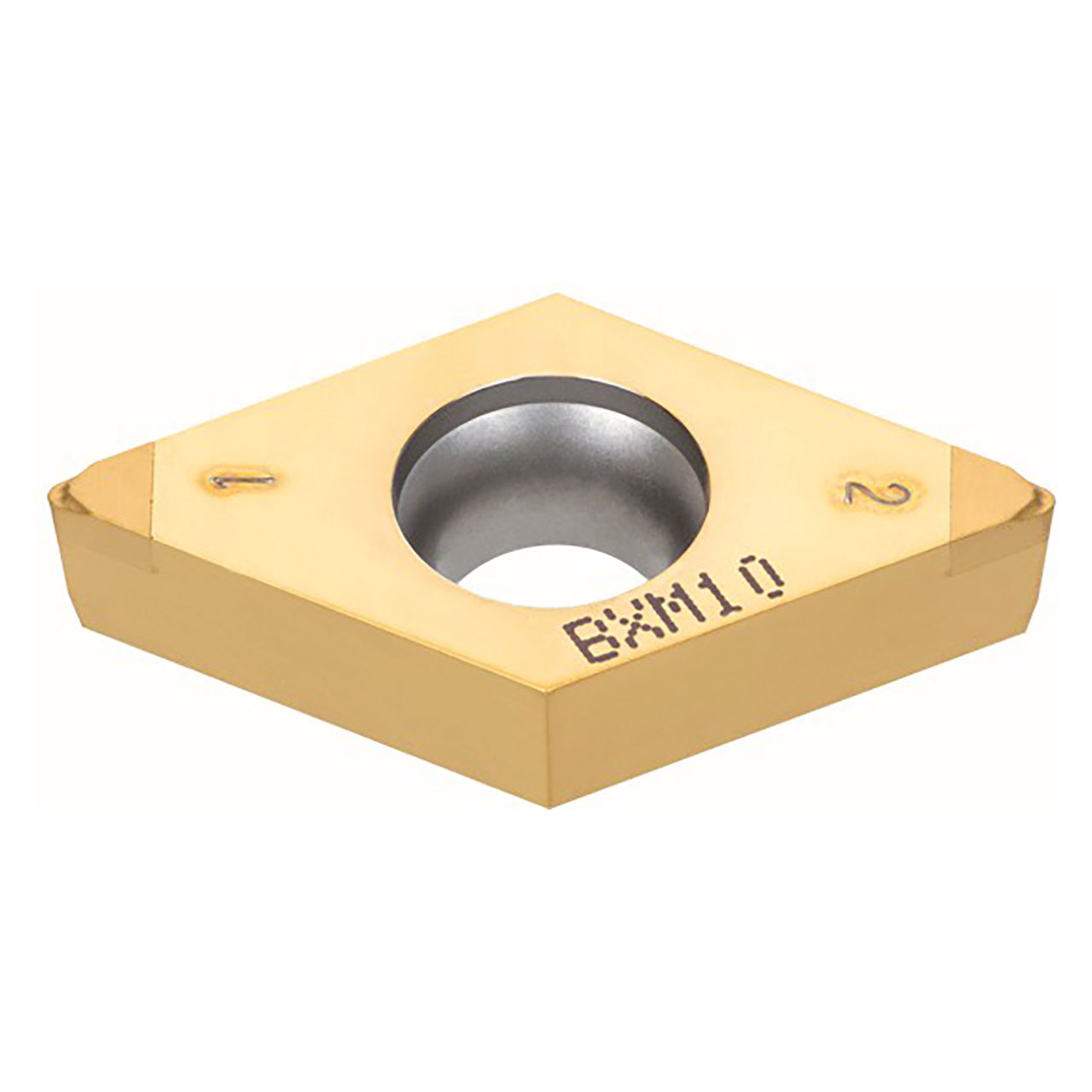

Positive 7 degree relief angle, G class, 55 degree rhombic CBN insert chipbreaker for finishing of hardened steel.
| # MFG | 6761668 |
| Corner Radius (Inch) | 0.031" |
| Cutting Edge Length (Inch) | 0.457" |
| Cutting Edge Effective Length (Inch) | 0.083" |
| Maximum Depth of Cut (Inch) | 0.0087" |
| Fixing Hole Diameter (Inch) | 0.173" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 0.156" |
| Maximum Turning Feed (Inch) | 0.0098"/rev |
| Minimum Depth of Cut (Inch) | 0.0012" |
| Minimum Turning Feed (Inch) | 0.0012"/rev |
| Cutting Edge Material | PCBN |
| Grade | BXA20 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Hard Materials |
| Chip Breaker Type | HP |
| Major Clearance Angle | 7 Degree |
| Body Material | Carbide |
