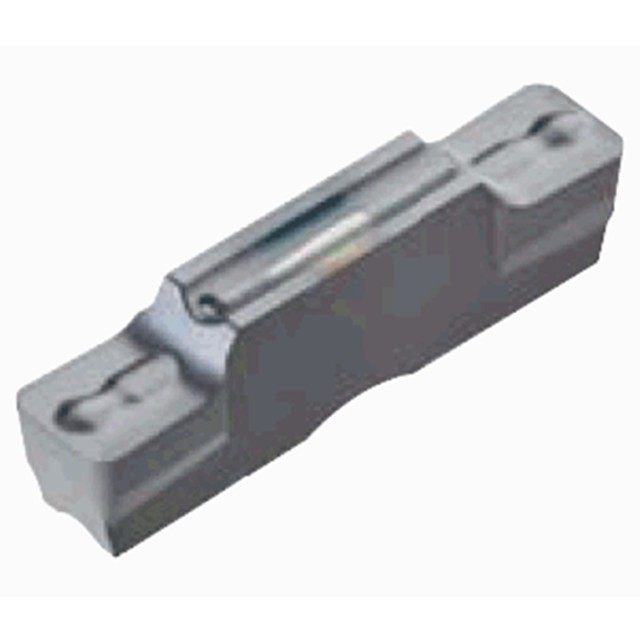

Precision double-ended inserts for external, face grooving & turning, tolerance of insert width +-0.0008" (only DTE3-,4-,5-,6-*** +-0.002").
Product Specifications
| Manufacturer Part Number | 6769169 |
| Cutting Width (Inch) | 0.197" |
| Corner Radius (Inch) | 0.0157" |
| Maximum Depth of Cut (Inch) | 0.925" |
| Cutting Direction | Neutral |
| Number of Cutting Edges | 2 |
| Cutting Edge Material | Carbide |
| Tool Type | Groove-Turn Utility Inserts |
| Grade | T515 |
| Coating | TiCN+Al2O3 |
| Body Material | Carbide |
| Applicable Material | Cast Iron |
| Application | Inserts |
