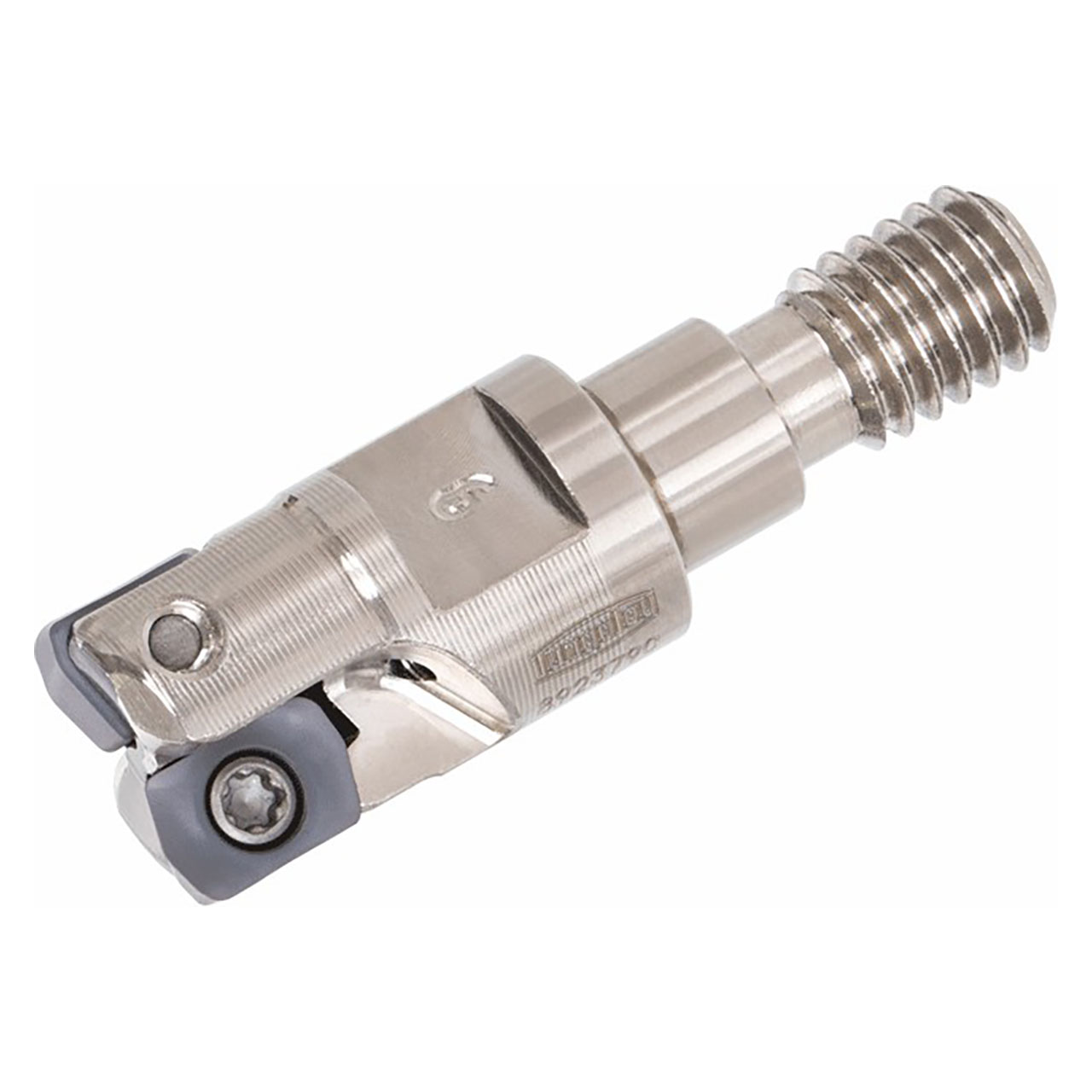

High feed milling cutters with LSMT inserts. Modular heads with TungFlex threaded adaptation.
| # MFG | 6772875 |
| Connection Diameter Machine Side (mm) | 9.5mm |
| Connection Retention Knob Thread Size | M6 |
| Cutting Diameter (mm) | 6.28mm |
| Cutting Item Count | 2 |
| Maximum Cutting Diameter (mm) | 10mm |
| Maximum Depth of Cut (mm) | 0.5mm |
| Functional Length (mm) | 17mm |
| Overall Length (mm) | 31.5mm |
| Shank Height (mm) | 7mm |
| Tool Cutting Edge Angle (Degree) | 12 Degree |
| Body Material | Steel |
| Application | Face Milling, High Feed Milling, Profile Milling |
| Tool Type | Fast Feed Endmill |
