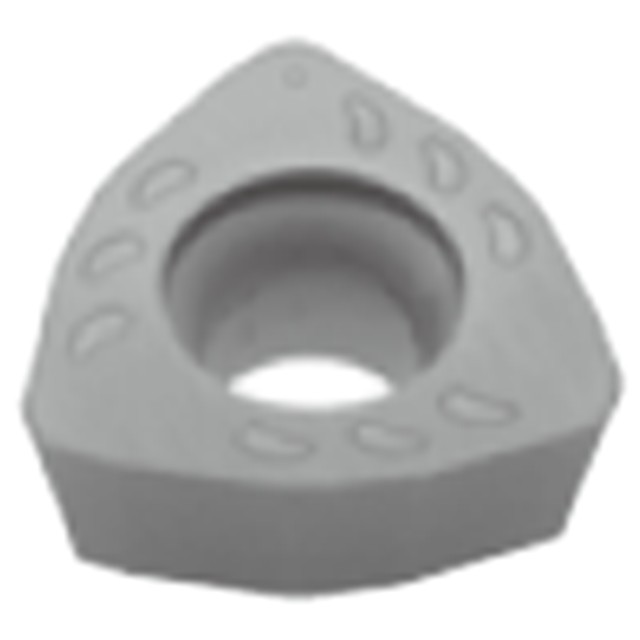

Flat-top trigon insert for Mill Feed cutters for medium diameter.
Product Specifications
| Manufacturer Part Number | 6773019 |
| Cutting Edge Effective Length (Inch) | 0.315" |
| Corner Radius (Inch) | 0.059" |
| Depth of Cut Maximum (Inch) | 0.059" |
| Inscribed Circle Diameter (Inch) | 0.507" |
| Insert Thickness (Inch) | 1/4" |
| Number of Cutting Edges | 3 |
| Application | Face Milling, High Feed Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH3135 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Hard Materials, Hi Temp Alloys |
