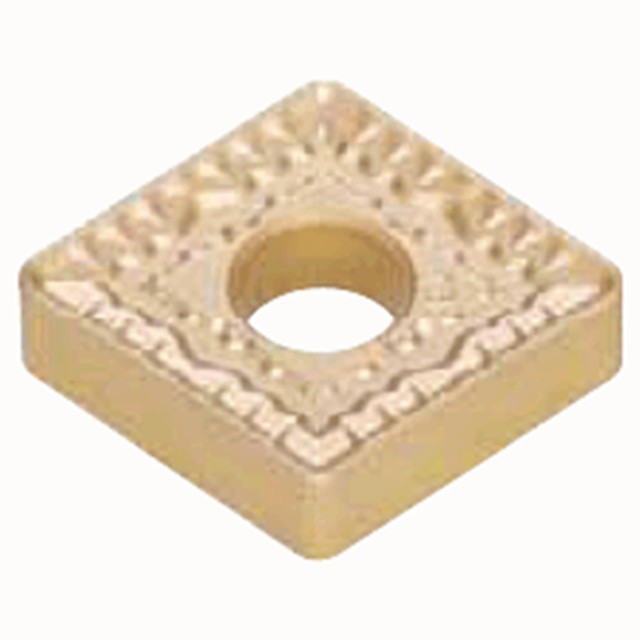

Negative relief angle, M class, 80 degree rhombic insert, for heavy cutting.
| Manufacturer Part Number | 6773851 |
| Corner Radius (Inch) | 0.126" |
| Cutting Edge Length (Inch) | 1.016" |
| Maximum Depth of Cut (Inch) | 0.4724" |
| Fixing Hole Diameter (Inch) | 0.359" |
| Inscribed Circle Diameter (Inch) | 1" |
| Insert Thickness (Inch) | 3/8" |
| Maximum Turning Feed (Inch) | 0.059"/rev |
| Minimum Depth of Cut (Inch) | 0.0393" |
| Minimum Turning Feed (Inch) | 0.0197"/rev |
| Coating | TiCN+Al2O3+TiN |
| Cutting Edge Material | Carbide |
| Grade | T9215 |
| Tool Type | Turn Negative Inserts |
| Applicable Material | Steel |
| Chip Breaker Type | TUS |
| Body Material | Carbide |
