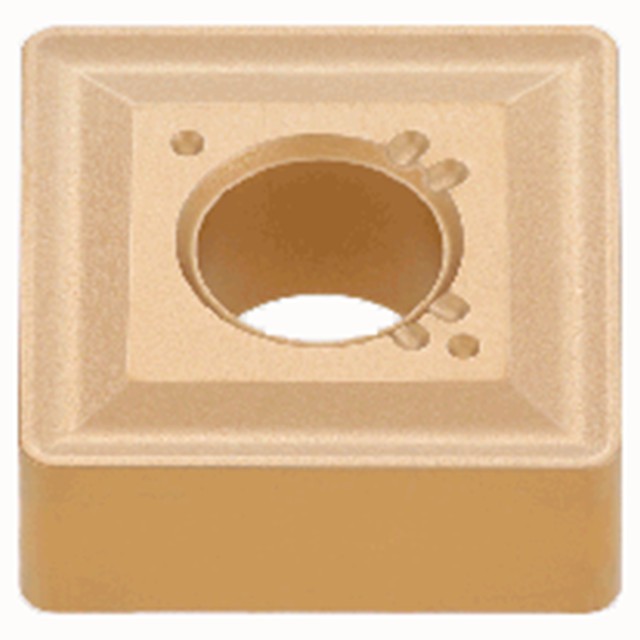

Tungaloy 6773866 | SNMG 322 T9215 3/8" Circle Diameter x 1/8" Thickness x 0.031" Radius TiCN+Al2O3+TiN Coated Carbide Indexable Turning Insert

$10.25 $7.18
(You save $3.07)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
1/8"
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0310"
SKU:
23129694
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Negative relief angle, M class, square insert, all-round chipbreaker for medium cutting.


Product Specifications
Manufacturer Part Number6773866
Corner Radius (Inch)0.031"
Cutting Edge Length (Inch)3/8"
Maximum Depth of Cut (Inch)0.2362"
Fixing Hole Diameter (Inch)0.15"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)1/8"
Maximum Turning Feed (Inch)0.0157"/rev
Minimum Depth of Cut (Inch)0.0394"
Minimum Turning Feed (Inch)0.0079"/rev
CoatingTiCN+Al2O3+TiN
Cutting Edge MaterialCarbide
GradeT9215
Tool TypeTurn Negative Inserts
Applicable MaterialSteel
Chip Breaker TypeAR
Body MaterialCarbide
