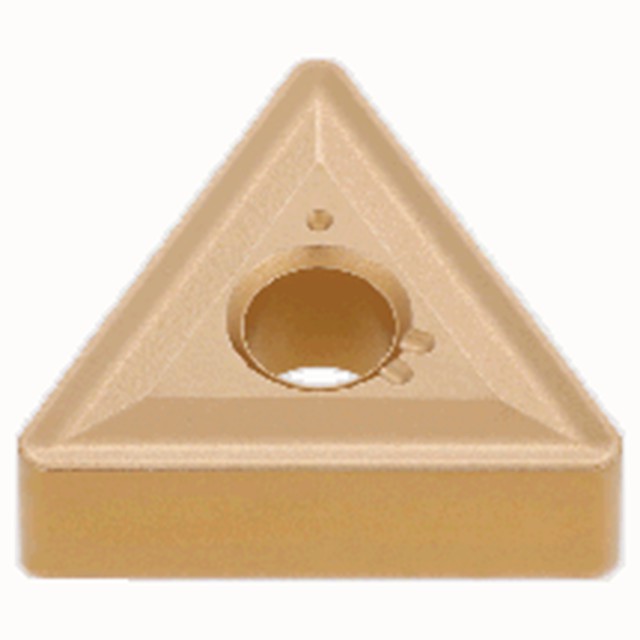

Tungaloy 6773935 | TNMG 332 T9215 3/8" Circle Diameter x 0.187" Thickness x 0.031" Radius TiCN+Al2O3+TiN Coated Carbide Indexable Turning Insert

$12.95 $9.07
(You save $3.88)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0310"
Corner Radius (mm):
0.79mm
SKU:
23129763
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Negative relief angle, M class, triangular insert, all-round chipbreaker for medium cutting.


Product Specifications
Manufacturer Part Number6773935
Corner Radius (Inch)0.031"
Cutting Edge Length (Inch)0.65"
Maximum Depth of Cut (Inch)0.2362"
Fixing Hole Diameter (Inch)0.15"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0157"/rev
Minimum Depth of Cut (Inch)0.0394"
Minimum Turning Feed (Inch)0.0079"/rev
CoatingTiCN+Al2O3+TiN
Cutting Edge MaterialCarbide
GradeT9215
Tool TypeTurn Negative Inserts
Applicable MaterialSteel
Chip Breaker TypeAR
Body MaterialCarbide
