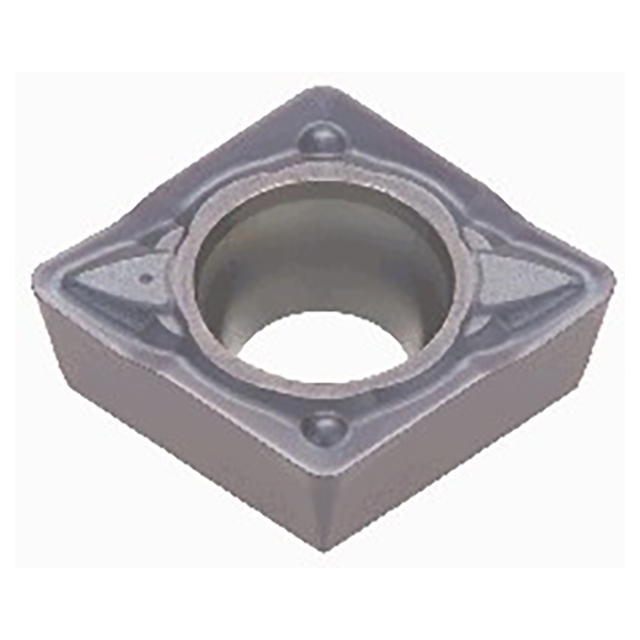

Positive 11 degree relief angle, M class, 80 degree rhombic insert, for finishing to medium cutting.
| # MFG | 6774027 |
| Corner Radius (Inch) | 0.031" |
| Cutting Edge Length (Inch) | 0.382" |
| Maximum Depth of Cut (Inch) | 0.0787" |
| Fixing Hole Diameter (Inch) | 0.173" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 0.156" |
| Maximum Turning Feed (Inch) | 0.0118"/rev |
| Minimum Depth of Cut (Inch) | 0.0118" |
| Minimum Turning Feed (Inch) | 0.0039"/rev |
| Coating | TiCN+Al2O3+TiN |
| Cutting Edge Material | Carbide |
| Grade | T9215 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Steel |
| Chip Breaker Type | PSS |
| Major Clearance Angle | 11 Degree |
| Body Material | Carbide |
