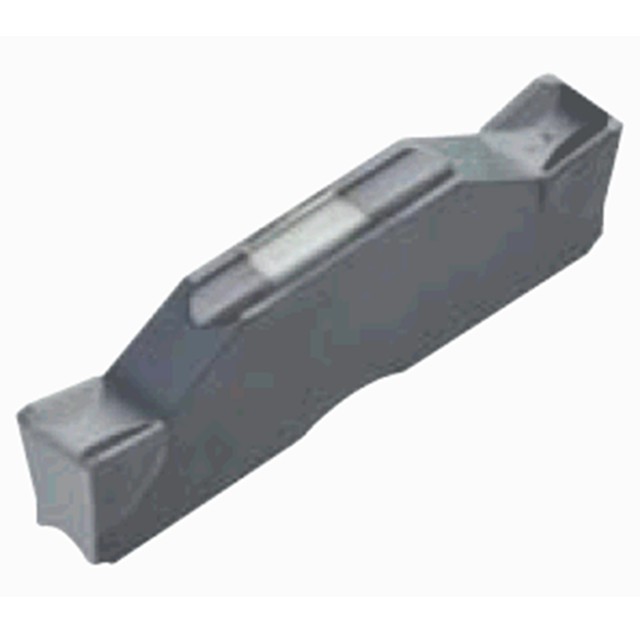

Double-ended inserts, 1st choice for external grooving & parting, tolerance of insert width +/-0.002".
| Manufacturer Part Number | 6774784 |
| Cutting Width (Inch) | 0.118" |
| Insert Length (Inch) | 0.787" |
| Corner Radius (Inch) | 0.0079" |
| Maximum Work Piece Parting Diameter (Inch) | 1.417" |
| Major Left Hand Cutting Edge Angle (Degree) | 15 Degree |
| Grade | AH7025 |
| Tool Type | Face Turn-Groove Inserts |
| Cutting Edge Material | Carbide |
| Coating | TiAlN |
| Applicable Material | Steel, Stainless Steel, Hi Temp Alloys |
| Body Material | Carbide |
