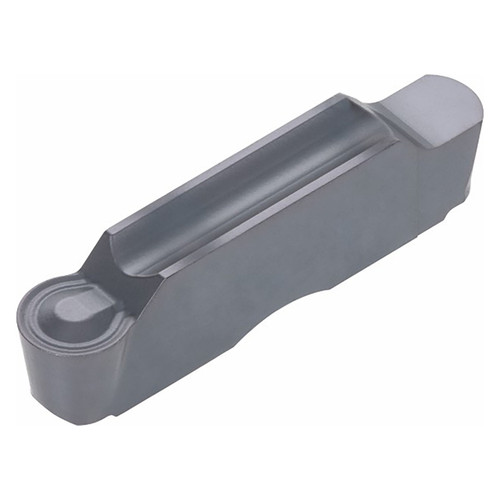

Full radius, precision double-ended inserts for profiling & undercutting, tolerance of insert width +-0.0008".
Product Specifications
| Manufacturer Part Number | 6774860 |
| Cutting Width (Inch) | 0.157" |
| Corner Radius (Inch) | 0.0787" |
| Cutting Direction | Neutral |
| Number of Cutting Edges | 2 |
| Cutting Edge Material | Carbide |
| Tool Type | Groove-Turn Precision Inserts |
| Grade | AH7025 |
| Coating | TiAlN |
| Body Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Hi Temp Alloys |
| Application | Inserts |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Corner Radius (Decimal Inch):
0.0787"
Finish/Coating:
TiAlN
Body Material:
Carbide
Grade:
AH7025
Cutting Direction:
Neutral
Cutting Width (Decimal Inch):
0.1570"
