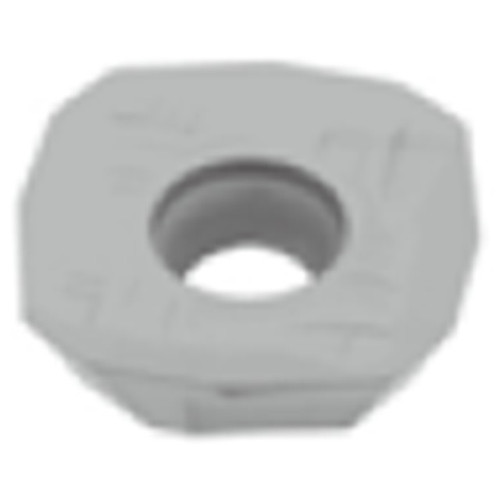

Applicable for super high feed milling.
| Manufacturer Part Number | 6774948 |
| Corner Radius (Inch) | 0.059" |
| Depth of Cut Maximum (Inch) | 0.079" |
| Inscribed Circle Diameter (Inch) | 0.579" |
| Insert Thickness (Inch) | 0.157" |
| Insert Width (Inch) | 0.579" |
| Maximum Feed per Tooth | 0.0236"/tooth |
| Minimum Feed per Tooth | 0.0079"/tooth |
| Number of Cutting Edges | 4 |
| Wiper Edge Length | 0.091" |
| Application | Face Milling |
| Body Material | Carbide |
| Grade | T3225 |
| Applicable Material | Steel, Stainless Steel |
