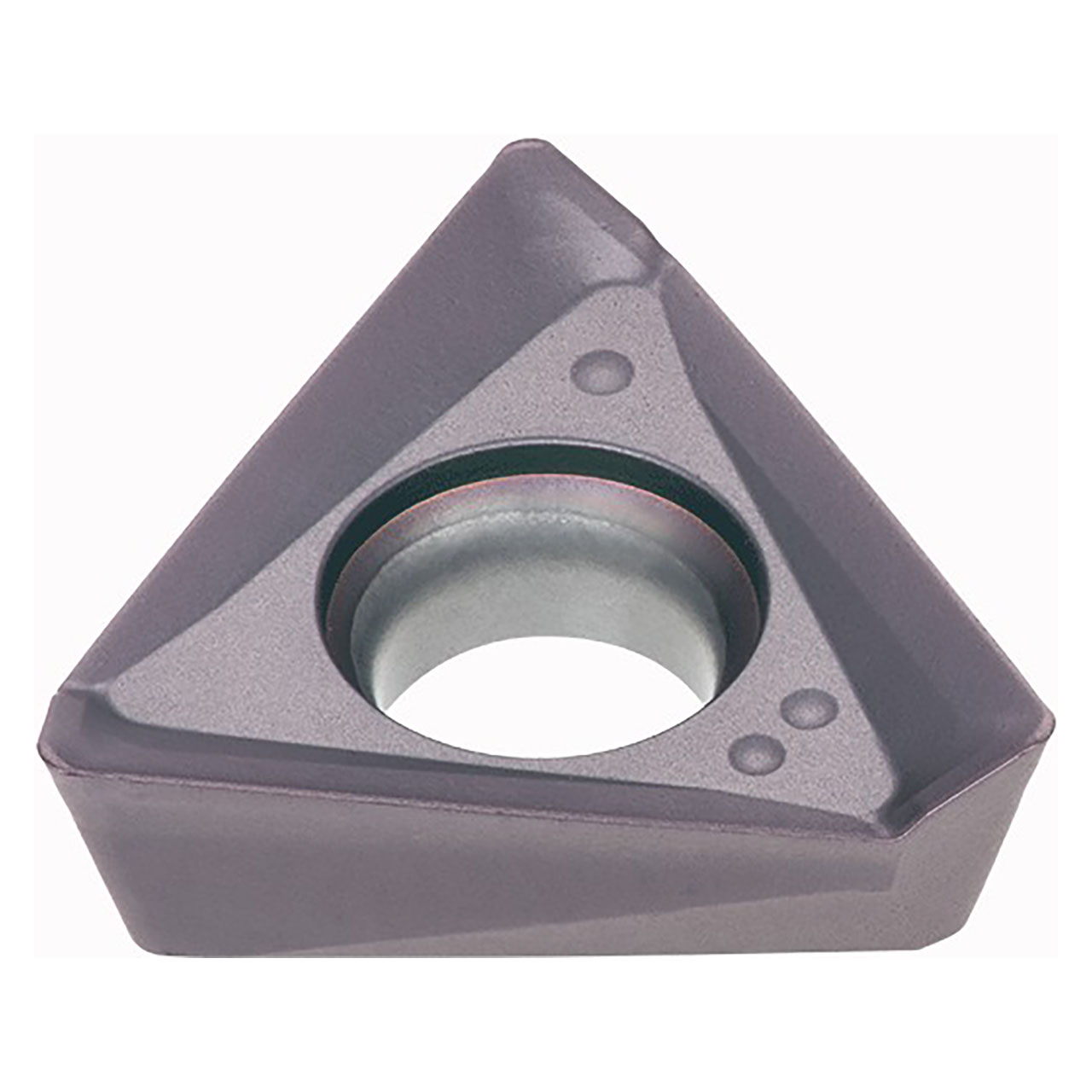

High performance inserts with MJ chipbreaker for general purpose.
| # MFG | 6774950 |
| Cutting Edge Effective Length (Inch) | 0.244" |
| Corner Radius (Inch) | 0.0157" |
| Depth of Cut Maximum (Inch) | 0.236" |
| Inscribed Circle Diameter (Inch) | 0.22" |
| Insert Thickness (Inch) | 0.126" |
| Maximum Feed per Tooth | 0.0059"/tooth |
| Minimum Feed per Tooth | 0.002"/tooth |
| Number of Cutting Edges | 3 |
| Wiper Edge Length | 0.047" |
| Application | Shoulder Milling |
| Body Material | Carbide |
| Grade | T3225 |
| Applicable Material | Steel, Stainless Steel |
