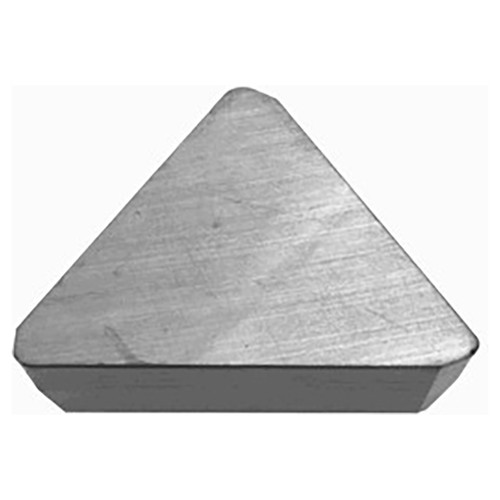

Flat-top triangle insert with 20 degree relief angle for shoulder milling.
| # MFG | 6774980 |
| Corner Radius (Inch) | 0.0315" |
| Depth of Cut Maximum (Inch) | 0.315" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 1/8" |
| Number of Cutting Edges | 3 |
| Wiper Edge Length | 0.039" |
| Application | Shoulder Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH3135 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Hard Materials, Hi Temp Alloys |
