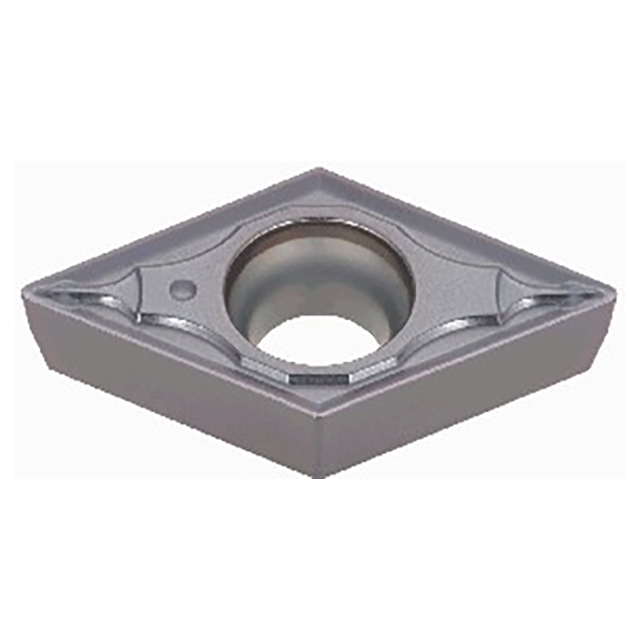

Positive 7 degree relief angle, M class, 55 degree rhombic insert, for finishing to medium cutting.
| # MFG | 6775792 |
| Corner Radius (Inch) | 0.031" |
| Cutting Edge Length (Inch) | 0.307" |
| Maximum Depth of Cut (Inch) | 0.0984" |
| Fixing Hole Diameter (Inch) | 0.11" |
| Inscribed Circle Diameter (Inch) | 1/4" |
| Insert Thickness (Inch) | 0.094" |
| Maximum Turning Feed (Inch) | 0.0118"/rev |
| Minimum Depth of Cut (Inch) | 0.0197" |
| Minimum Turning Feed (Inch) | 0.0039"/rev |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Grade | AH8005 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Hard Materials, Hi Temp Alloys |
| Chip Breaker Type | PS |
| Major Clearance Angle | 7 Degree |
| Body Material | Carbide |
