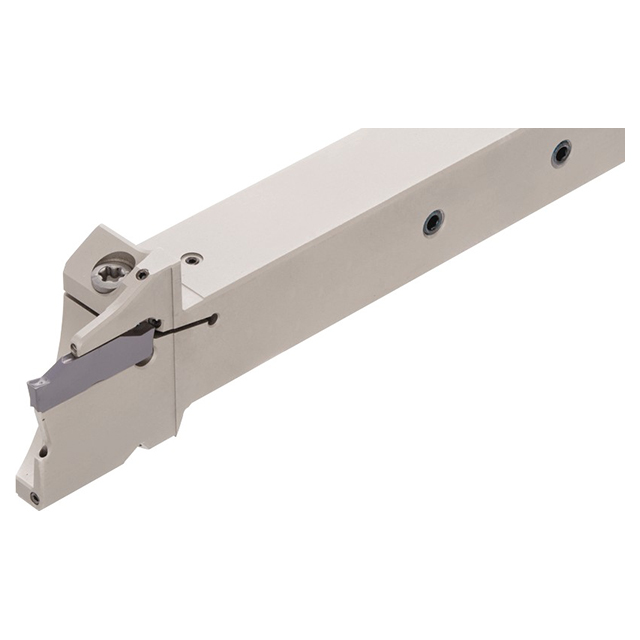

External grooving & parting toolholders with high pressure coolant channels for swiss lathes. Compatible to the direct internal coolant supply system without the use of external coolant hose.
Product Specifications
| Manufacturer Part Number | 6776505 |
| Cutting Width Maximum (Inch) | 0.098" |
| Cutting Width Minimum (Inch) | 0.059" |
| Functional Length (Inch) | 4-3/4" |
| Functional Width (Inch) | 5/8" |
| Head Length (Inch) | 0.972" |
| Shank Height (Inch) | 5/8" |
| Shank Width (Inch) | 5/8" |
| Cutting Direction | Left Hand |
| Tool Type | Parting & Grooving Tools |
| Application | External Grooving, Parting Off |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Minimum Groove Width (Inch):
1/16"
Minimum Groove Width (Decimal Inch):
0.0590"
Minimum Groove Width (mm):
1.50mm
Maximum Groove Width (Inch):
3/32"
Maximum Groove Width (Decimal Inch):
0.0980"
Maximum Groove Width (mm):
2.49mm
Shank Height (Inch):
5/8"
Shank Height (Decimal Inch):
0.6300"
Shank Height (mm):
15.88mm
Shank Width (Inch):
5/8"
Shank Width (Decimal Inch):
0.6300"
Shank Width (mm):
15.88mm
interval quantity:
