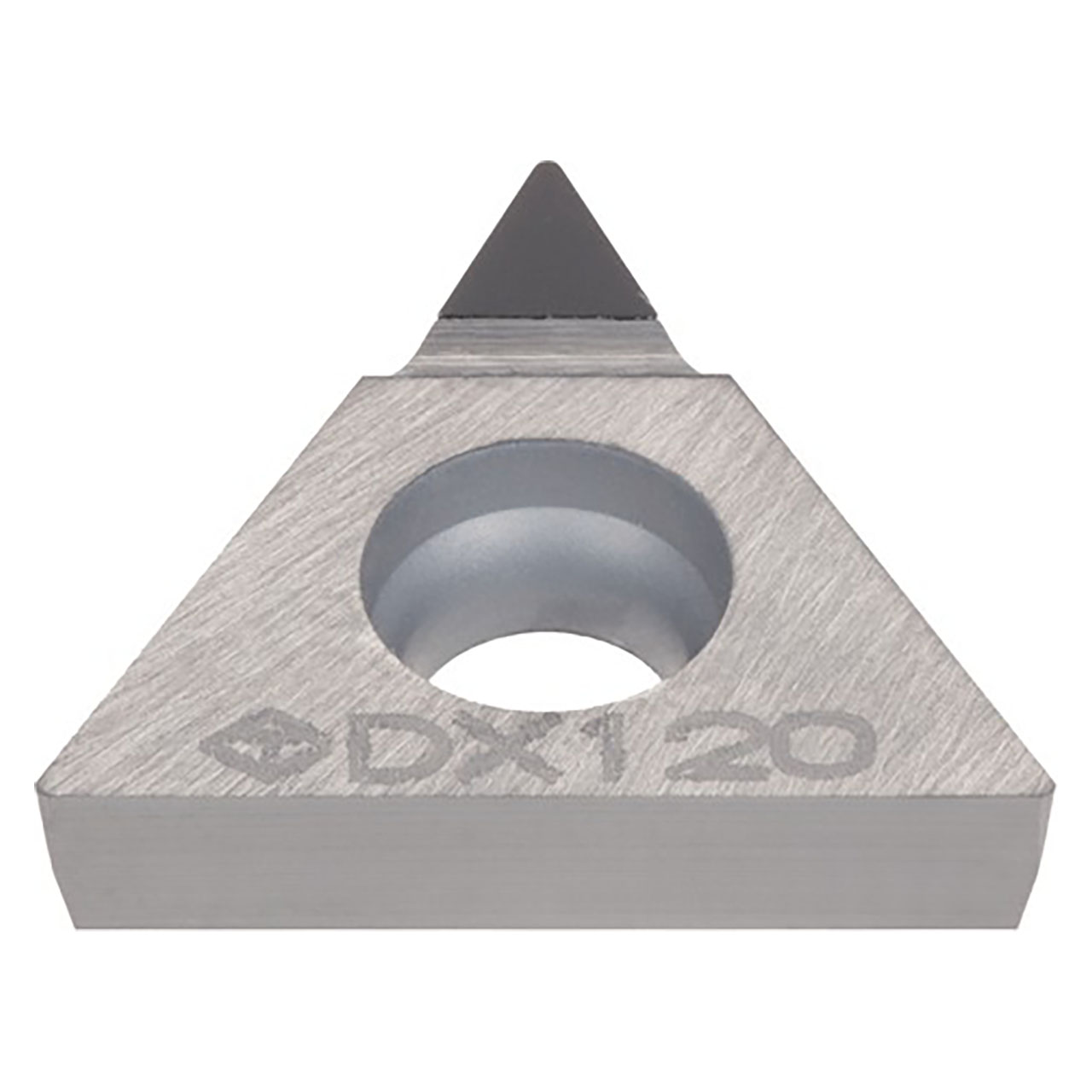

Positive 7 degree relief angle, M class, triangular PCD insert.
| # MFG | 6776606 |
| Corner Radius (Inch) | 0.016" |
| Cutting Edge Length (Inch) | 0.433" |
| Cutting Edge Effective Length (Inch) | 0.087" |
| Maximum Depth of Cut (Inch) | 0.0394" |
| Fixing Hole Diameter (Inch) | 0.11" |
| Inscribed Circle Diameter (Inch) | 1/4" |
| Insert Thickness (Inch) | 1/8" |
| Maximum Turning Feed (Inch) | 0.0079"/rev |
| Minimum Depth of Cut (Inch) | 0.002" |
| Minimum Turning Feed (Inch) | 0.002"/rev |
| Cutting Edge Material | PCD |
| Grade | DX110 |
| Tool Type | Turn Ultra Hard Inserts |
| Applicable Material | Non Ferrous Metals |
| Chip Breaker Type | BR-DIA |
| Major Clearance Angle | 7 Degree |
| Body Material | Carbide |
