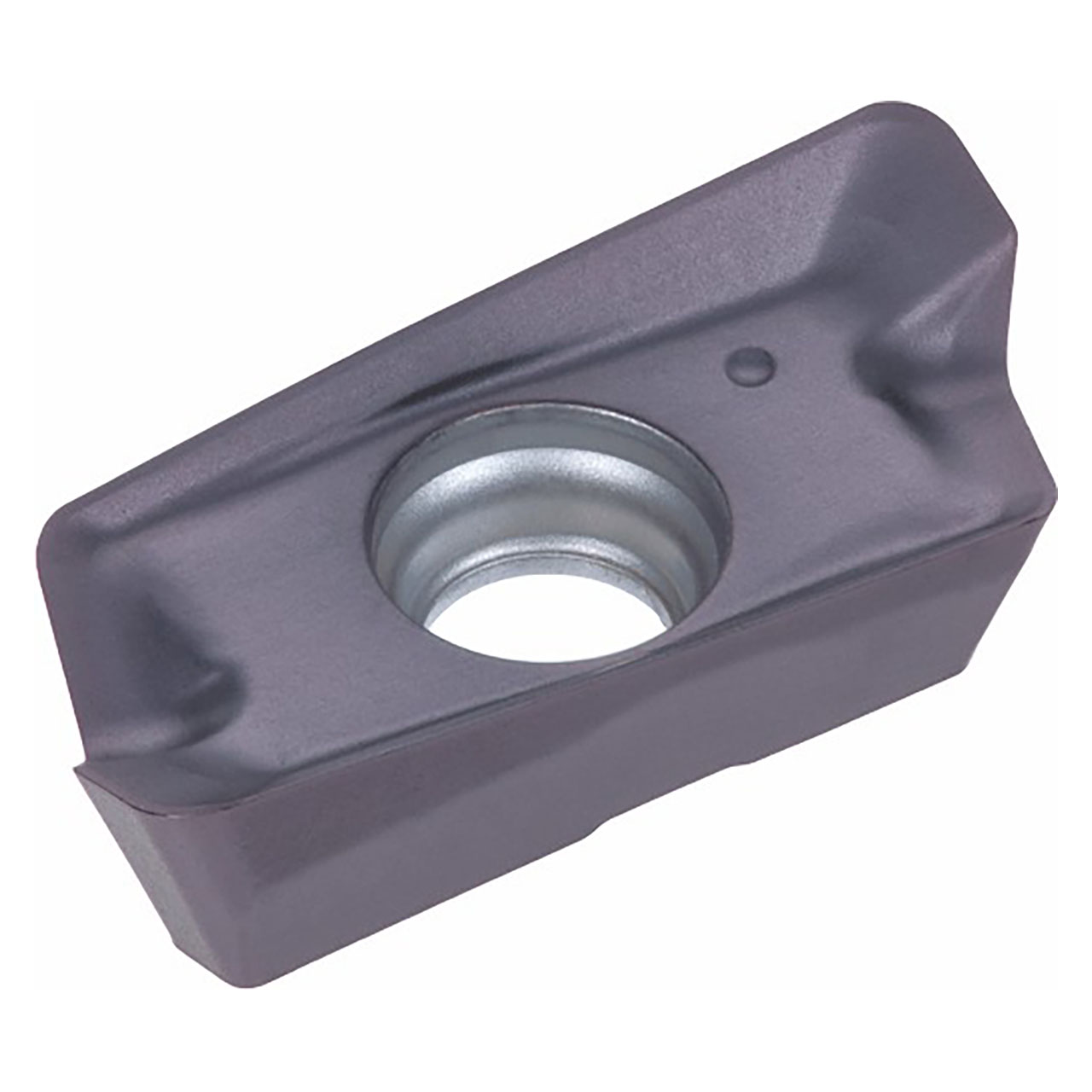

Single-sided insert with 2 edges and MM chipbreaker for general purpose use.
Product Specifications
| # MFG | 6776651 |
| Cutting Edge Effective Length (Inch) | 0.465" |
| Depth of Cut Maximum (Inch) | 0.453" |
| Insert Length (Inch) | 0.559" |
| Insert Thickness (Inch) | 0.142" |
| Insert Width (Inch) | 0.26" |
| Number of Cutting Edges | 2 |
| Wiper Edge Length | 0.043" |
| Application | Shoulder Milling |
| Coating | TiCN+Al2O3 |
| Body Material | Carbide |
| Grade | T1215 |
| Cutting Edge Material | Carbide |
| Applicable Material | Cast Iron |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
T1215
Finish/Coating:
TiCN+Al2O3
Width (Inch):
17/64"
Width (Decimal Inch):
0.2600"
Width (mm):
6.60mm
Length (Inch):
9/16"
Length (Decimal Inch):
0.5590"
Length (mm):
14.20mm
Thickness (Inch):
9/64"
Thickness (Decimal Inch):
0.1420"
Thickness (mm):
3.61mm
interval quantity:
10
