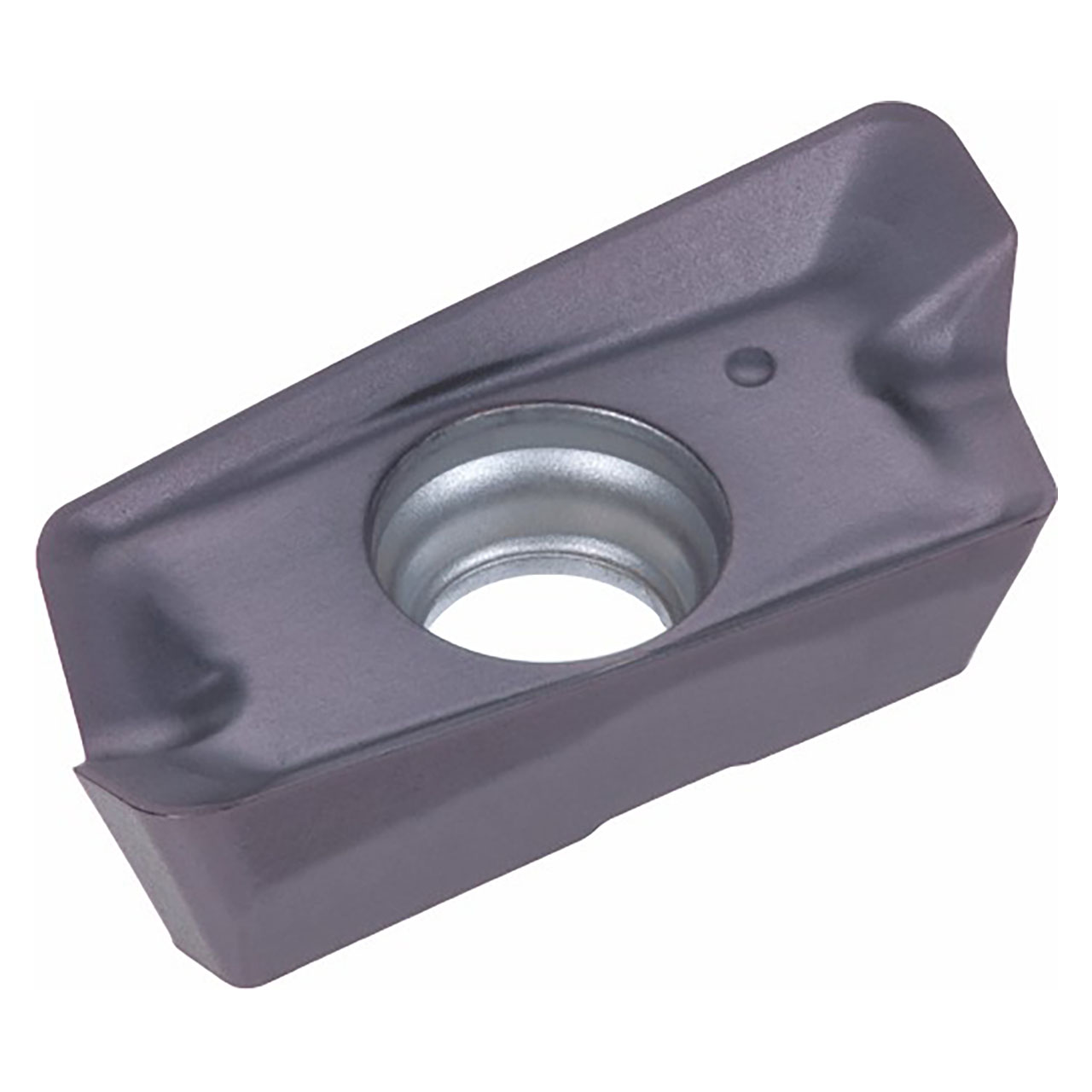

Single-sided insert with 2 edges and MM chipbreaker for general purpose use.
| # MFG | 6776649 |
| Cutting Edge Effective Length (Inch) | 0.465" |
| Depth of Cut Maximum (Inch) | 0.453" |
| Insert Length (Inch) | 0.559" |
| Insert Thickness (Inch) | 0.142" |
| Insert Width (Inch) | 0.26" |
| Number of Cutting Edges | 2 |
| Wiper Edge Length | 0.043" |
| Application | Shoulder Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH120 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys |
