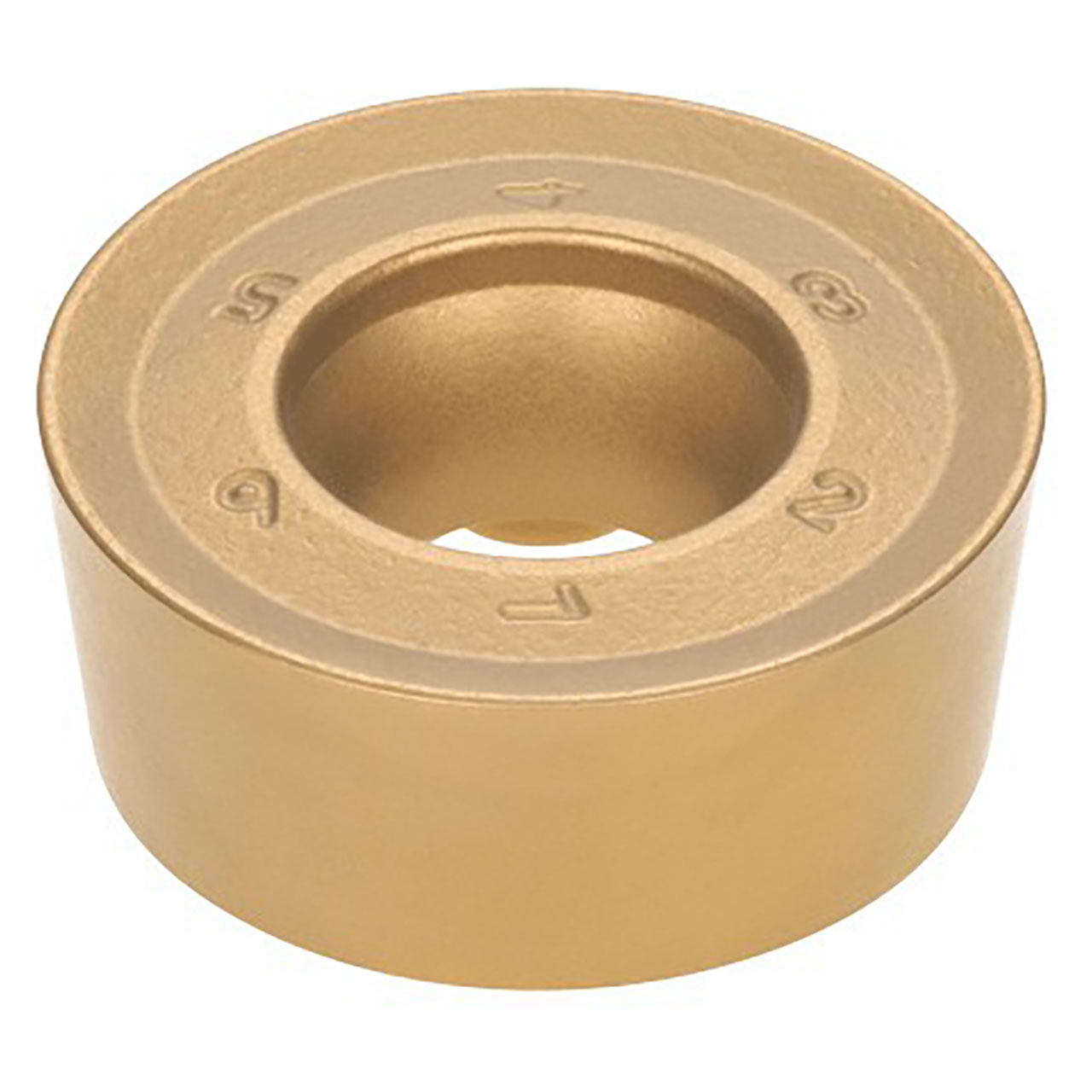

Positive 7 degree relief angle, M class, round insert, for general use.
| # MFG | 6780661 |
| Cutting Edge Length (Inch) | 0.472" |
| Maximum Depth of Cut (Inch) | 0.1181" |
| Fixing Hole Diameter (Inch) | 0.173" |
| Inscribed Circle Diameter (Inch) | 0.472" |
| Insert Thickness (Inch) | 0.187" |
| Maximum Turning Feed (Inch) | 0.0394"/rev |
| Minimum Depth of Cut (Inch) | 0.0394" |
| Minimum Turning Feed (Inch) | 0.0197"/rev |
| Grade | T9225 |
| Tool Type | Square Shank Turning Tools |
| Applicable Material | Steel |
| Chip Breaker Type | 6RM |
| Major Clearance Angle | 7 Degree |
| Body Material | Carbide |
