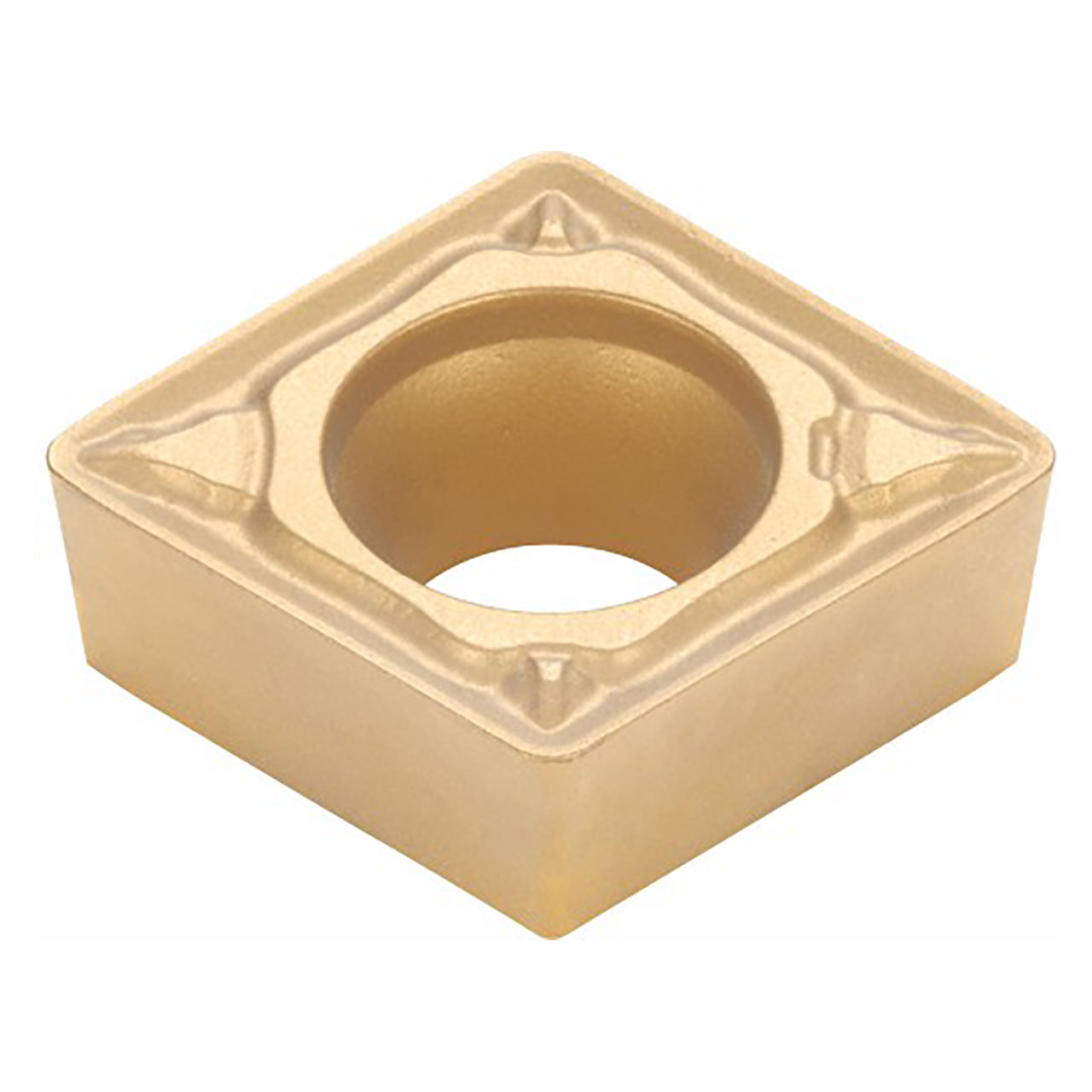

Positive 7 degree relief angle, M class, 80 degree rhombic insert with wiper edge for finishing to medium cutting.
| # MFG | 6780680 |
| Corner Radius (Inch) | 0.031" |
| Cutting Edge Length (Inch) | 0.382" |
| Maximum Depth of Cut (Inch) | 0.0984" |
| Fixing Hole Diameter (Inch) | 0.173" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 0.156" |
| Maximum Turning Feed (Inch) | 0.0157"/rev |
| Minimum Depth of Cut (Inch) | 0.0196" |
| Minimum Turning Feed (Inch) | 0.0059"/rev |
| Grade | T9225 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Steel |
| Chip Breaker Type | SW |
| Major Clearance Angle | 7 Degree |
| Body Material | Carbide |
