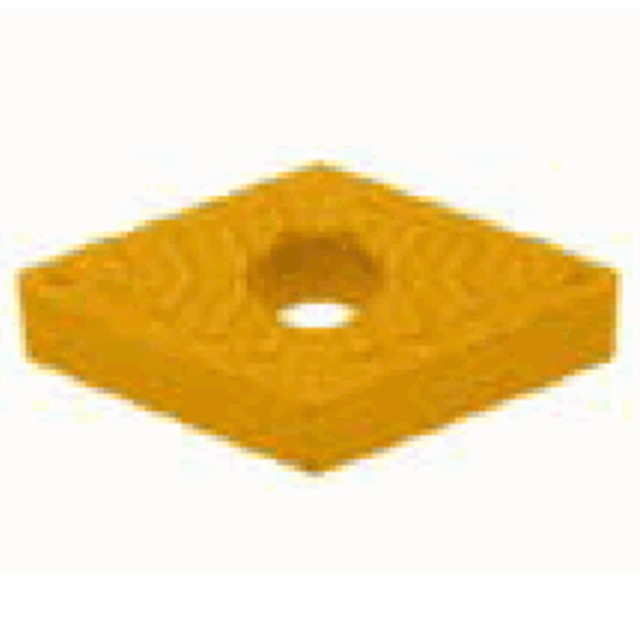

Tungaloy 6780762 | DNMG 432-27 T9225 1/2" Circle Diameter x 0.187" Thickness x 0.031" Radius Carbide Indexable Turning Insert

$23.50 $16.45
(You save $7.05)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0310"
Corner Radius (mm):
0.79mm
SKU:
23130636
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Negative relief angle, M class, 55 degree rhombic insert, for finishing to medium cutting.


Product Specifications
Manufacturer Part Number6780762
Corner Radius (Inch)0.031"
Cutting Edge Length (Inch)0.61"
Maximum Depth of Cut (Inch)0.0787"
Fixing Hole Diameter (Inch)0.203"
Inscribed Circle Diameter (Inch)1/2"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0157"/rev
Minimum Depth of Cut (Inch)0.0019"
Minimum Turning Feed (Inch)0.0079"/rev
GradeT9225
Tool TypeTurn Negative Inserts
Applicable MaterialSteel
Chip Breaker Type27
Body MaterialCarbide
