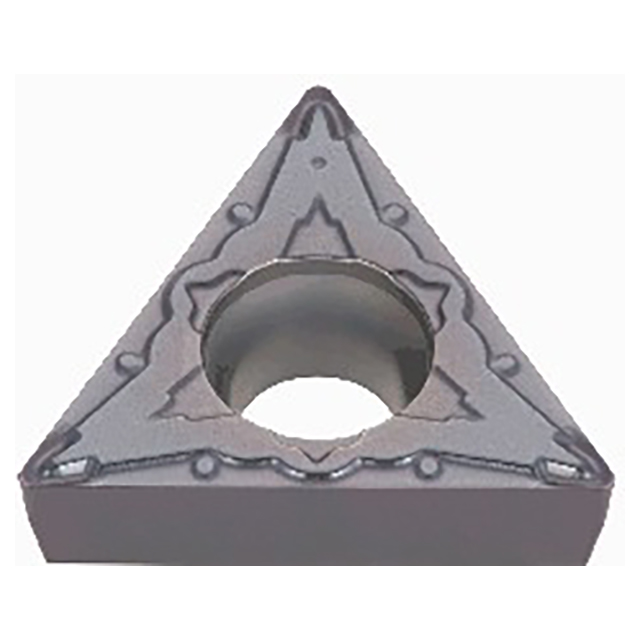

Positive 7 degree relief angle, M class, triangular insert, for finishing.
| # MFG | 6781016 |
| Corner Radius (Inch) | 0.016" |
| Cutting Edge Length (Inch) | 0.378" |
| Maximum Depth of Cut (Inch) | 0.0197" |
| Fixing Hole Diameter (Inch) | 0.098" |
| Inscribed Circle Diameter (Inch) | 0.219" |
| Insert Thickness (Inch) | 0.094" |
| Maximum Turning Feed (Inch) | 0.0118"/rev |
| Minimum Depth of Cut (Inch) | 0.0039" |
| Minimum Turning Feed (Inch) | 0.0031"/rev |
| Grade | T9225 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Steel |
| Chip Breaker Type | PSF |
| Major Clearance Angle | 7 Degree |
| Body Material | Carbide |
