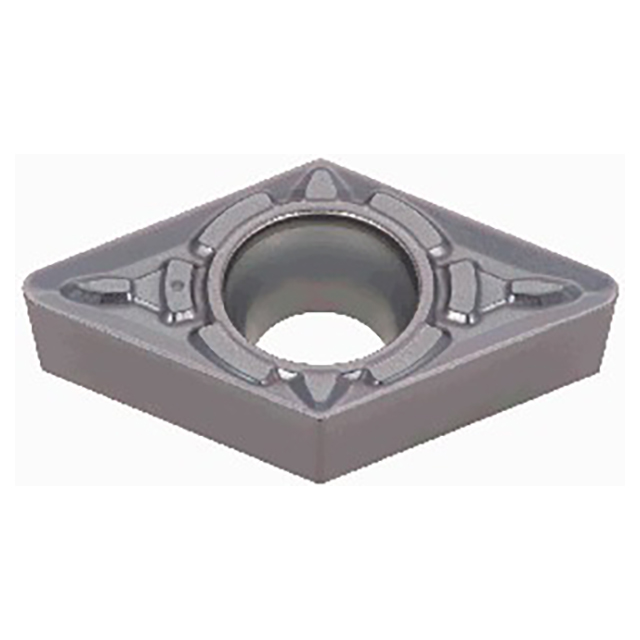

Tungaloy 6781053 | DCMT 21.52 PM T9225 1/4" Circle Diameter x 0.094" Thickness x 0.031" Radius Carbide Indexable Turning Insert

$17.80 $11.57
(You save $6.23)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/4"
Corner Radius (Decimal Inch):
0.0314"
Manufacturer's Grade:
T9225
Thickness (Decimal Inch):
0.0940"
interval quantity:
10
SKU:
23130927
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Positive 7 degree relief angle, M class, 55 degree rhombic insert, for medium cutting.


Product Specifications
# MFG6781053
Corner Radius (Inch)0.031"
Cutting Edge Length (Inch)0.307"
Maximum Depth of Cut (Inch)0.1181"
Fixing Hole Diameter (Inch)0.11"
Inscribed Circle Diameter (Inch)1/4"
Insert Thickness (Inch)0.094"
Maximum Turning Feed (Inch)0.0118"/rev
Minimum Depth of Cut (Inch)0.0394"
Minimum Turning Feed (Inch)0.0059"/rev
GradeT9225
Tool TypeTurn Positive Inserts
Applicable MaterialSteel
Chip Breaker TypePM
Major Clearance Angle7 Degree
Body MaterialCarbide
