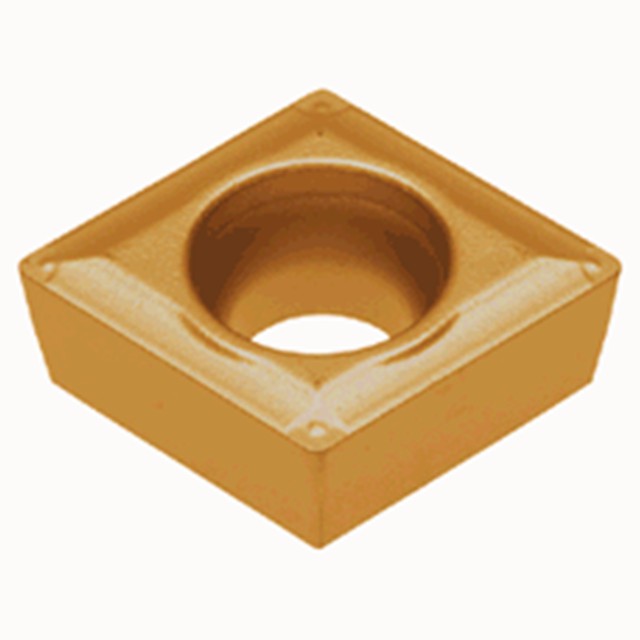

Tungaloy 6781148 | CCMT 32.52-23 T9225 3/8" Circle Diameter x 0.156" Thickness x 0.031" Radius Carbide Indexable Turning Insert

$16.10 $11.27
(You save $4.83)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
5/32"
Corner Radius (Decimal Inch):
0.0310"
Thickness (mm):
3.96mm
Corner Radius (mm):
0.79mm
SKU:
23131022
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Positive 7 degree relief angle, M class, 80 degree rhombic insert, for finishing to medium cutting.


Product Specifications
Manufacturer Part Number6781148
Corner Radius (Inch)0.031"
Cutting Edge Length (Inch)0.382"
Maximum Depth of Cut (Inch)0.0787"
Fixing Hole Diameter (Inch)0.173"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)0.156"
Maximum Turning Feed (Inch)0.0079"/rev
Minimum Depth of Cut (Inch)0.0196"
Minimum Turning Feed (Inch)0.0031"/rev
GradeT9225
Tool TypeTurn Positive Inserts
Applicable MaterialSteel
Chip Breaker Type23
Major Clearance Angle7 Degree
Body MaterialCarbide
