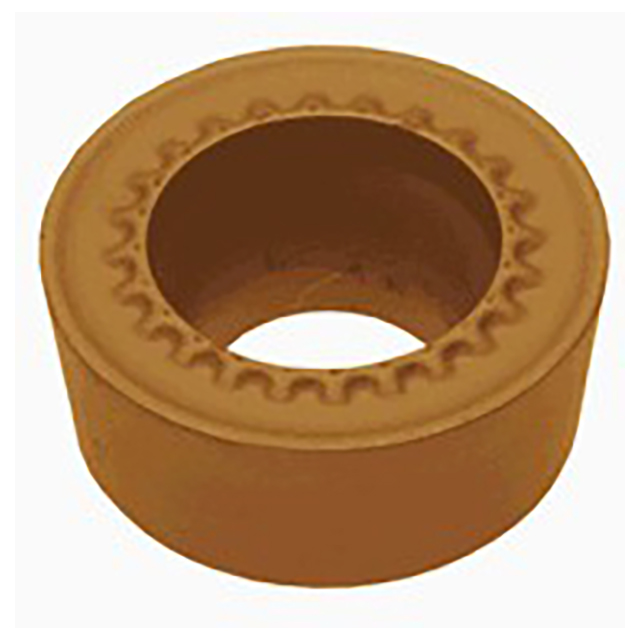

Positive 7 degree relief angle, M class, round insert, for finishing to medium cutting.
| # MFG | 6781165 |
| Cutting Edge Length (Inch) | 0.63" |
| Maximum Depth of Cut (Inch) | 0.1181" |
| Fixing Hole Diameter (Inch) | 0.217" |
| Inscribed Circle Diameter (Inch) | 0.63" |
| Insert Thickness (Inch) | 1/4" |
| Maximum Turning Feed (Inch) | 0.0472"/rev |
| Minimum Depth of Cut (Inch) | 0.059" |
| Minimum Turning Feed (Inch) | 0.0236"/rev |
| Grade | T9225 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Steel |
| Chip Breaker Type | RS |
| Major Clearance Angle | 7 Degree |
| Body Material | Carbide |
