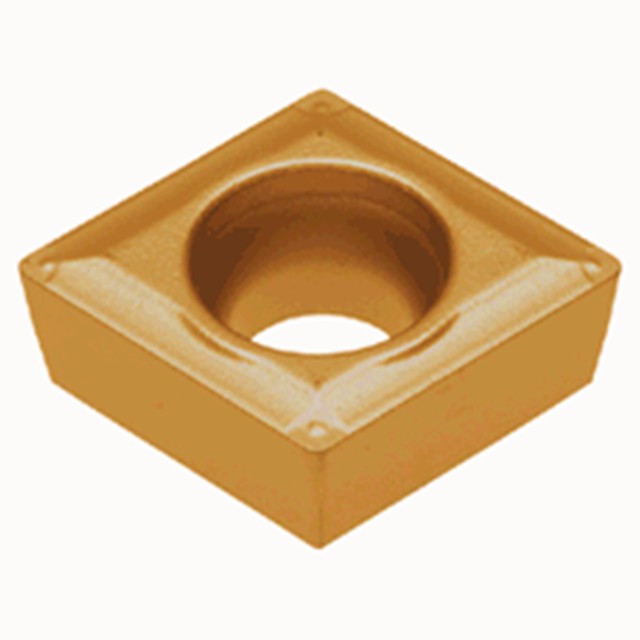

Tungaloy 6781202 | CCMT 21.51-23 T9225 1/4" Circle Diameter x 0.094" Thickness x 0.016" Radius Carbide Indexable Turning Insert

$13.55 $9.49
(You save $4.06)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0940"
Thickness (mm):
2.39mm
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.41mm
SKU:
23131076
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Positive 7 degree relief angle, M class, 80 degree rhombic insert, for finishing to medium cutting.


Product Specifications
Manufacturer Part Number6781202
Corner Radius (Inch)0.016"
Cutting Edge Length (Inch)0.256"
Maximum Depth of Cut (Inch)0.0787"
Fixing Hole Diameter (Inch)0.11"
Inscribed Circle Diameter (Inch)1/4"
Insert Thickness (Inch)0.094"
Maximum Turning Feed (Inch)0.0079"/rev
Minimum Depth of Cut (Inch)0.0196"
Minimum Turning Feed (Inch)0.0031"/rev
GradeT9225
Tool TypeTurn Positive Inserts
Applicable MaterialSteel
Chip Breaker Type23
Major Clearance Angle7 Degree
Body MaterialCarbide
