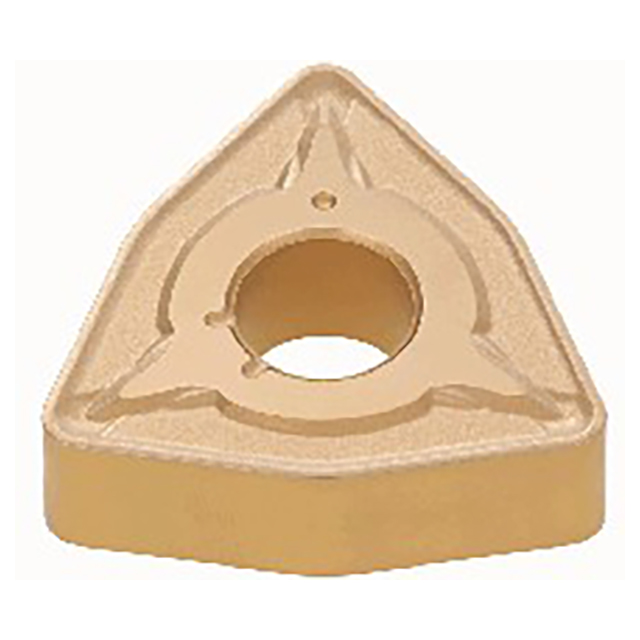

Negative relief angle, M class, trigon insert, for medium to heavy cutting.
| # MFG | 6781336 |
| Corner Radius (Inch) | 0.047" |
| Cutting Edge Length (Inch) | 0.429" |
| Maximum Depth of Cut (Inch) | 0.2795" |
| Fixing Hole Diameter (Inch) | 1/4" |
| Inscribed Circle Diameter (Inch) | 5/8" |
| Insert Thickness (Inch) | 1/4" |
| Maximum Turning Feed (Inch) | 0.0393"/rev |
| Minimum Depth of Cut (Inch) | 0.059" |
| Minimum Turning Feed (Inch) | 0.0118"/rev |
| Grade | T9225 |
| Tool Type | Turn Negative Inserts |
| Applicable Material | Steel |
| Chip Breaker Type | THS |
| Body Material | Carbide |
