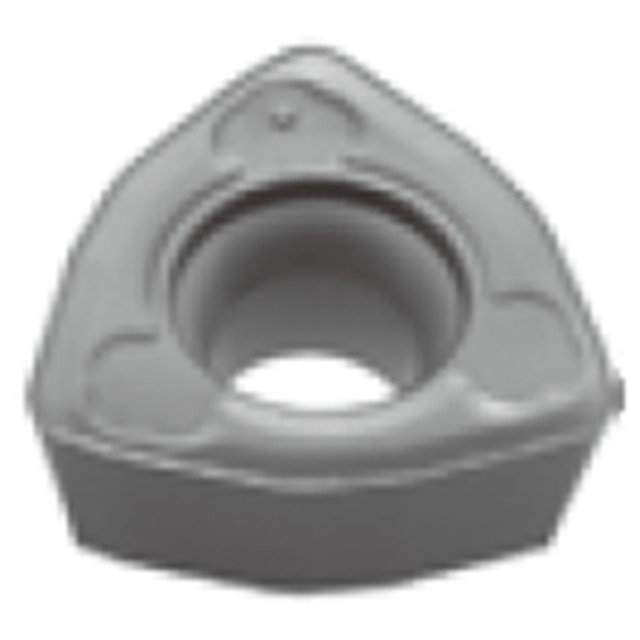

Tungaloy 6781353 | WPMT090725ZPR-ML T9225 0.591" Diameter x 0.276" Thickness x 0.098" Radius Carbide Milling Insert

$24.70 $16.06
(You save $8.64)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
19/32"
Inscribed Circle (Decimal Inch):
0.5910"
Inscribed Circle (mm):
15.01mm
Thickness (Inch):
9/32"
Thickness (Decimal Inch):
0.2760"
Thickness (mm):
7.01mm
interval quantity:
10
SKU:
23131227
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Trigon insert with ML chipbreaker with low cutting force.


Product Specifications
Manufacturer Part Number6781353
Cutting Edge Effective Length (Inch)0.354"
Corner Radius (Inch)0.098"
Depth of Cut Maximum (Inch)0.118"
Inscribed Circle Diameter (Inch)0.591"
Insert Thickness (Inch)0.276"
Number of Cutting Edges3
ApplicationFace Milling, High Feed Milling
Body MaterialCarbide
GradeT9225
Applicable MaterialSteel
