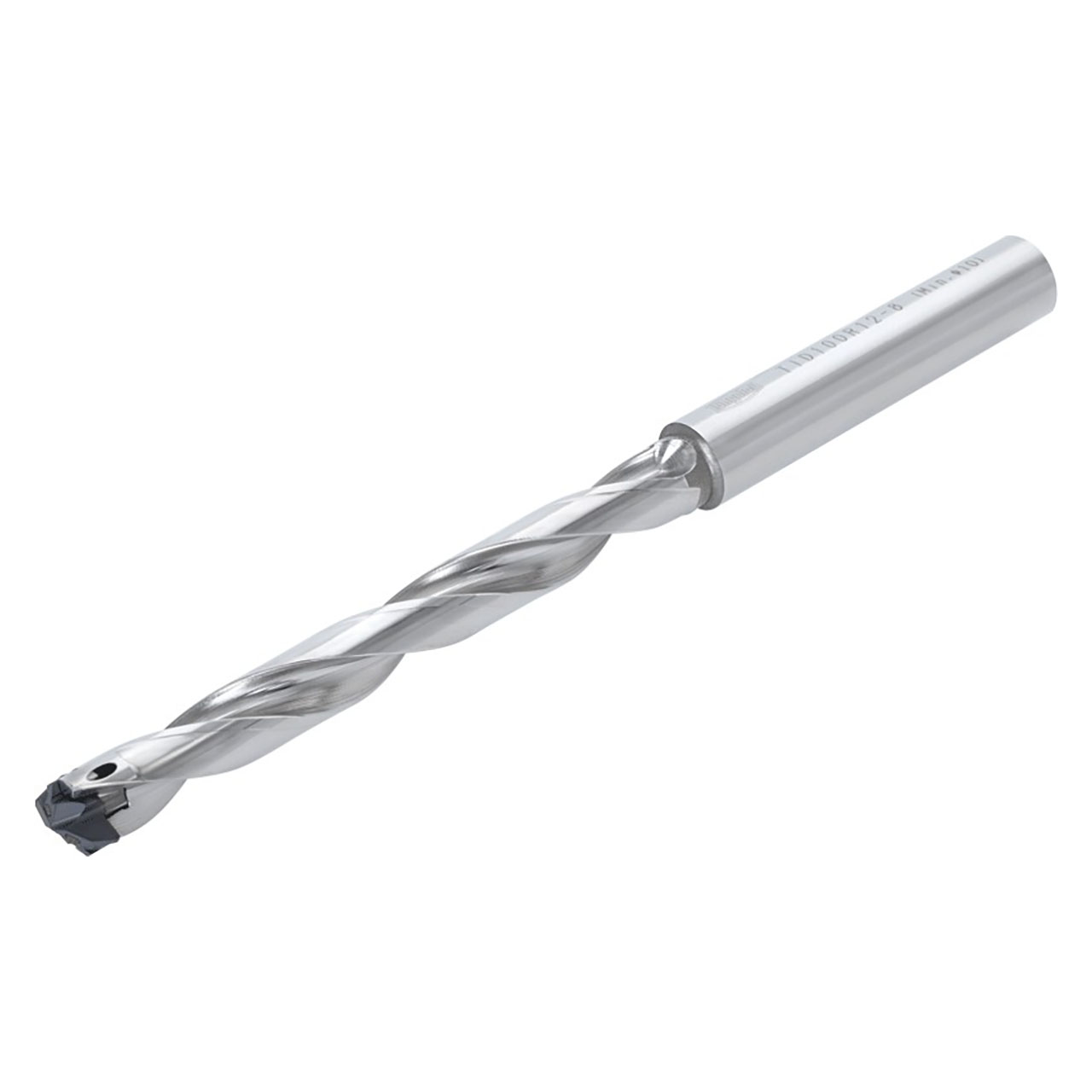

"DrillMeister" indexable head drill with flanged shank.
Product Specifications
| Cutting Diameter Maximum (mm) | 12.9 mm |
| Cutting Diameter Minimum (mm.) | 12.5 mm |
| Connection Diameter Machine Side (mm) | 16 mm |
| Overall Length (mm) | 186.89mm |
| Point Length (mm) | 1.76 mm |
| Shank Length (mm) | 48 mm |
| Usable Length (mm) | 60 mm |
| Insert Seat Size Code (SSC) | 11 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
