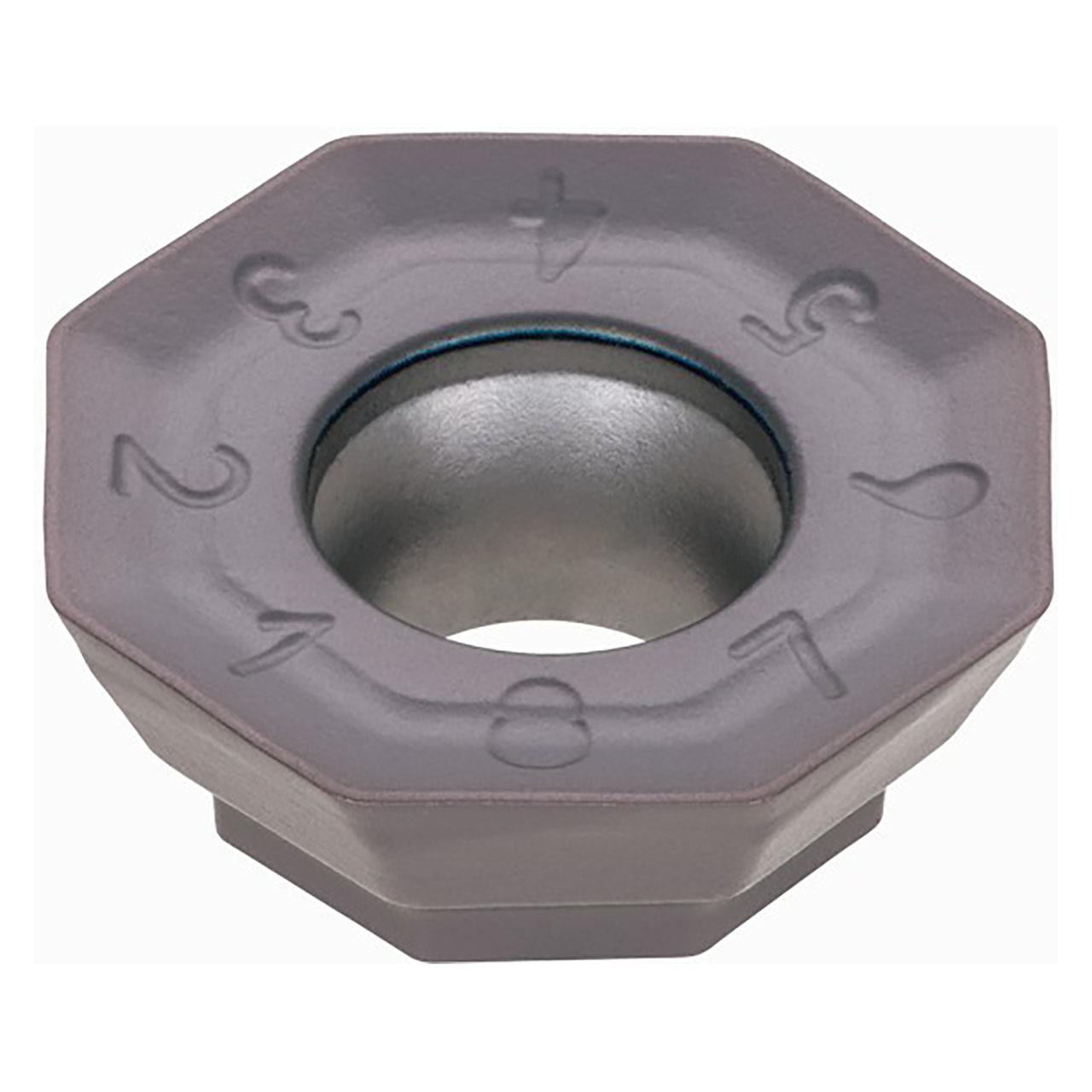

Octagonal milling insert with positive rake and MM chipbreaker, M class, 8 corners.
Product Specifications
| # MFG | 6785211 |
| Cutting Edge Effective Length (Inch) | 0.201" |
| Depth of Cut Maximum (Inch) | 0.118" |
| Insert Thickness (Inch) | 0.177" |
| Maximum Feed per Tooth | 0.0138"/tooth |
| Minimum Feed per Tooth | 0.002"/tooth |
| Number of Cutting Edges | 8 |
| Wiper Edge Length | 0.039" |
| Application | Face Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH120 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH120
Finish/Coating:
TiAlN
Thickness (Inch):
11/64"
Thickness (Decimal Inch):
0.1770"
Thickness (mm):
4.50mm
interval quantity:
10
