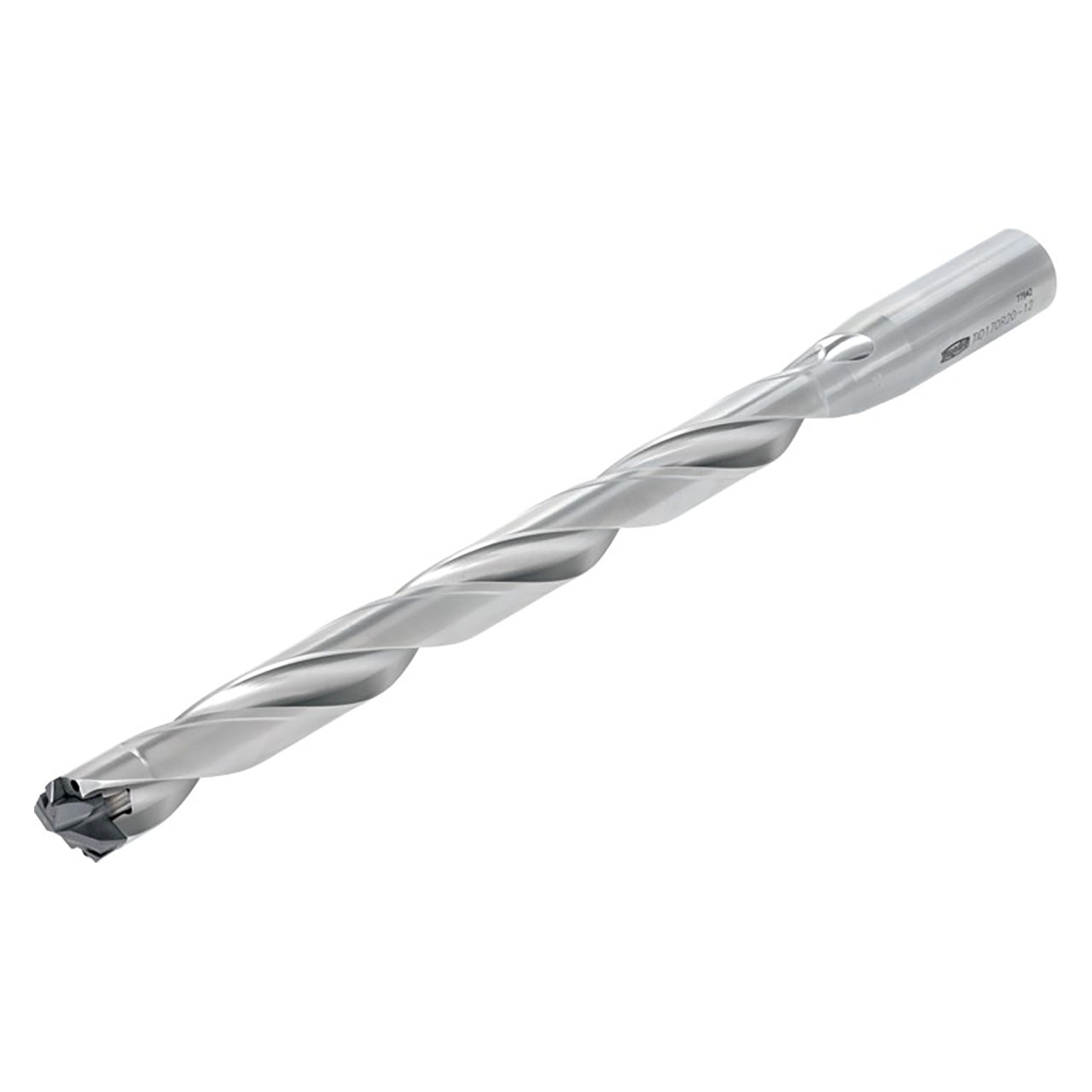

"DrillMeister" TIDC L/D=5 indexable head drills.
Product Specifications
| Cutting Diameter Maximum (mm) | 8.9 mm |
| Cutting Diameter Minimum (mm.) | 8.5 mm |
| Connection Diameter Machine Side (Inch) | 0.315" |
| Overall Length (mm) | 162.25mm |
| Point Length (Inch) | 0.044" |
| Shank Length (Inch)) | 1.417" |
| Shank Length (mm) | 1.496" |
| Insert Seat Size Code (SSC) | 7 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.3504"
Minimum Cutting Diameter (Decimal Inch):
0.3346"
Body Material:
Steel
Overall Length (Decimal Inch):
6.3880"
Point Length (Decimal Inch):
0.0510"
Shank Length (Decimal Inch):
1.7720"
Usable Length (Decimal Inch):
4.0940"
interval quantity:
1
