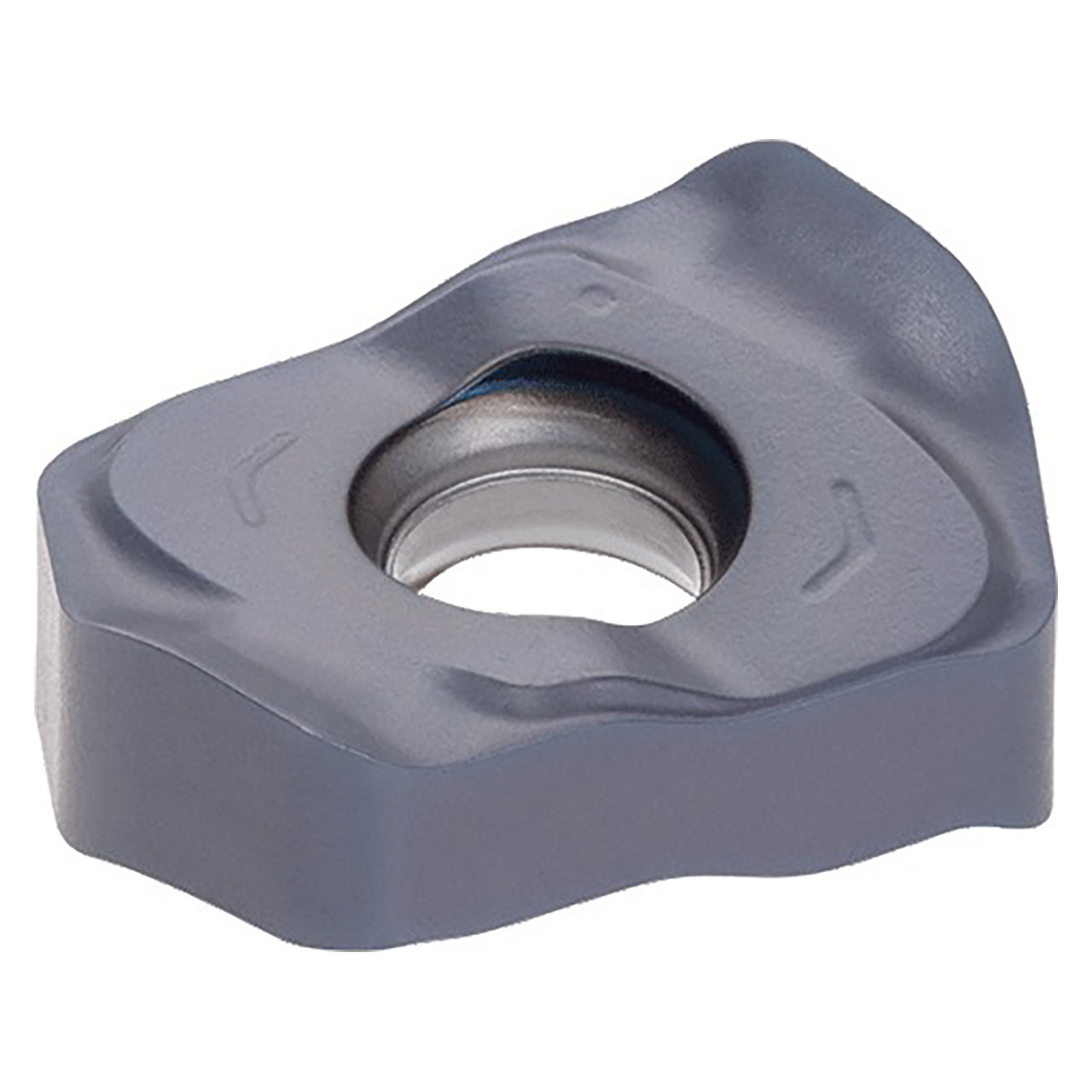

Double-sided insert with 4 edges for high-feed milling. Low cutting force type.
Product Specifications
| # MFG | 6789387 |
| Cutting Edge Effective Length (Inch) | 0.169" |
| Corner Radius (Inch) | 0.0512" |
| Depth of Cut Maximum (Inch) | 0.051" |
| Insert Length (Inch) | 0.472" |
| Insert Thickness (Inch) | 0.197" |
| Insert Width (Inch) | 0.323" |
| Maximum Feed per Tooth | 0.0512"/tooth |
| Minimum Feed per Tooth | 0.0118"/tooth |
| Number of Cutting Edges | 4 |
| Application | High Feed Milling, Profile Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH8015 |
| Cutting Edge Material | Carbide |
| Applicable Material | Stainless Steel, Hard Materials, Hi Temp Alloys |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH8015
Finish/Coating:
TiAlN
Width (Inch):
21/64"
Width (Decimal Inch):
0.3230"
Width (mm):
8.20mm
Length (Inch):
15/32"
Length (Decimal Inch):
0.4720"
Length (mm):
11.99mm
Thickness (Inch):
13/64"
Thickness (Decimal Inch):
0.1970"
Thickness (mm):
5.00mm
interval quantity:
10
