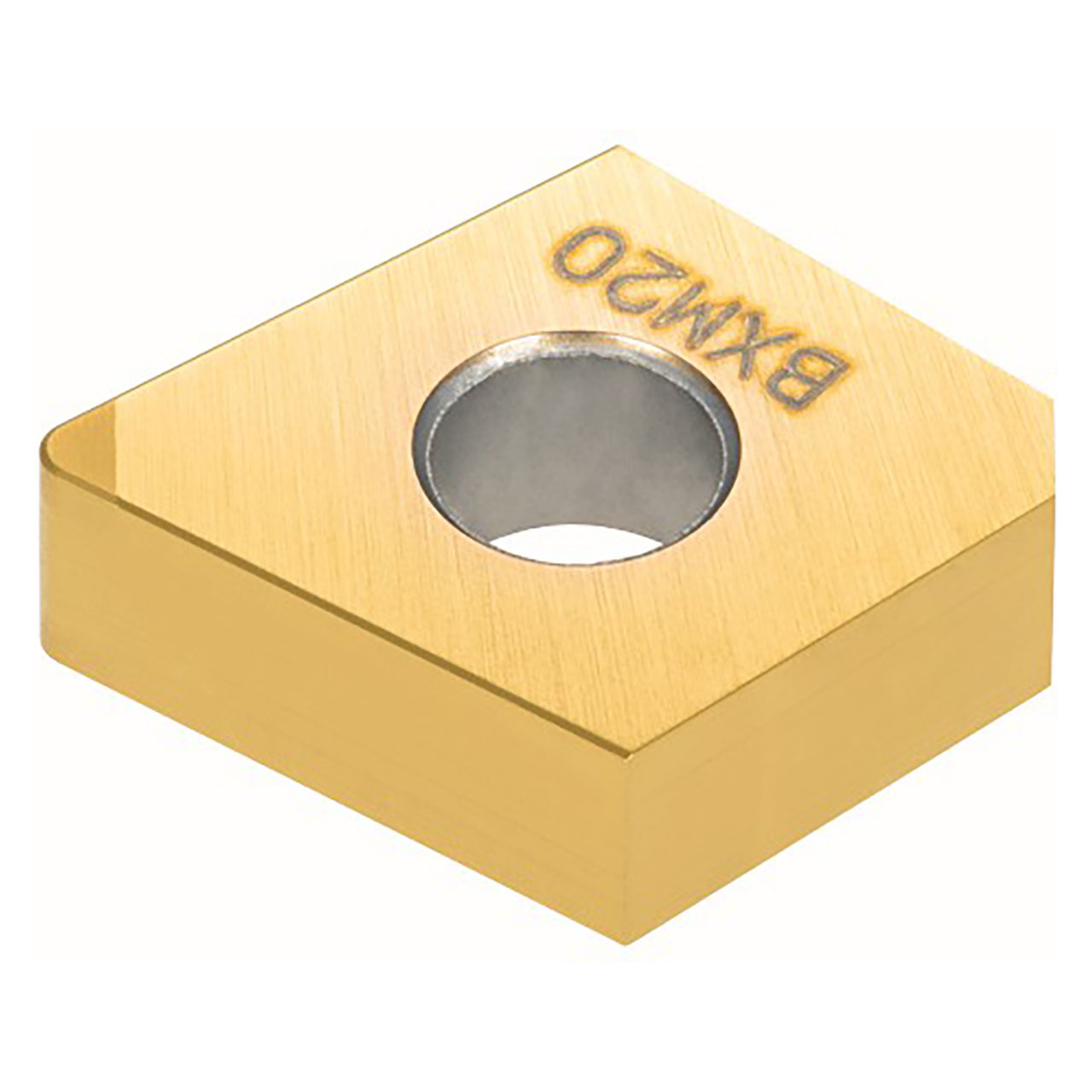

Negative relief angle, G class CBN insert with corner angle 70 degree, for existing toolholder carrying CN**43 insert.
| # MFG | 6792107 |
| Corner Radius (Inch) | 0.047" |
| Cutting Edge Length (Inch) | 0.508" |
| Cutting Edge Effective Length (Inch) | 0.087" |
| Maximum Depth of Cut (Inch) | 0.0197" |
| Fixing Hole Diameter (Inch) | 0.203" |
| Inscribed Circle Diameter (Inch) | 1/2" |
| Insert Thickness (Inch) | 0.187" |
| Maximum Turning Feed (Inch) | 0.0118"/rev |
| Minimum Depth of Cut (Inch) | 0.002" |
| Minimum Turning Feed (Inch) | 0.002"/rev |
| Grade | BXA10 |
| Applicable Material | Hard Materials |
| Chip Breaker Type | LF-CBN |
| Body Material | Carbide |
