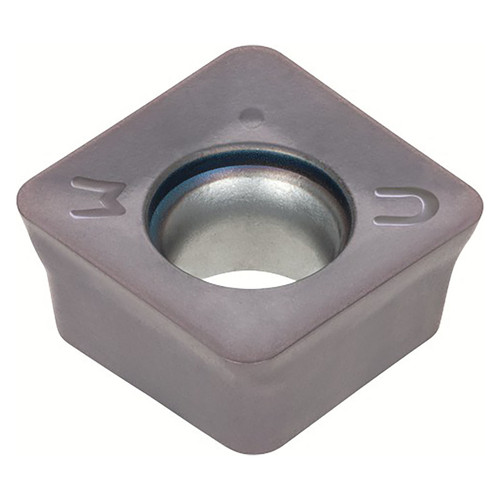

Tungaloy 6793420 | SWMT0904UER-MM AH130 0.157" Thickness x 0.039" Depth of Cut TiAlN Coated Carbide Milling Insert

$22.10 $18.34
(You save $3.76)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH130
Finish/Coating:
TiAlN
Width (Inch):
23/64"
Width (Decimal Inch):
0.3560"
Width (mm):
9.04mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1570"
Thickness (mm):
3.99mm
interval quantity:
10
SKU:
23155862
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Single-sided square insert with MM chipbreaker for general purpose use. Low entering angle type. Suitable for difficult-to-machine materials.


Product Specifications
# MFG6793420
Cutting Edge Effective Length (Inch)0.356"
Depth of Cut Maximum (Inch)0.039"
Insert Thickness (Inch)0.157"
Insert Width (Inch)0.356"
Maximum Feed per Tooth0.059"/tooth
Minimum Feed per Tooth0.0039"/tooth
Number of Cutting Edges4
ApplicationFace Milling, High Feed Milling
CoatingTiAlN
Body MaterialCarbide
GradeAH130
Cutting Edge MaterialCarbide
Applicable MaterialSteel, Stainless Steel
